Danfoss High Pressure Pumps
| Technical Data | |
|---|---|

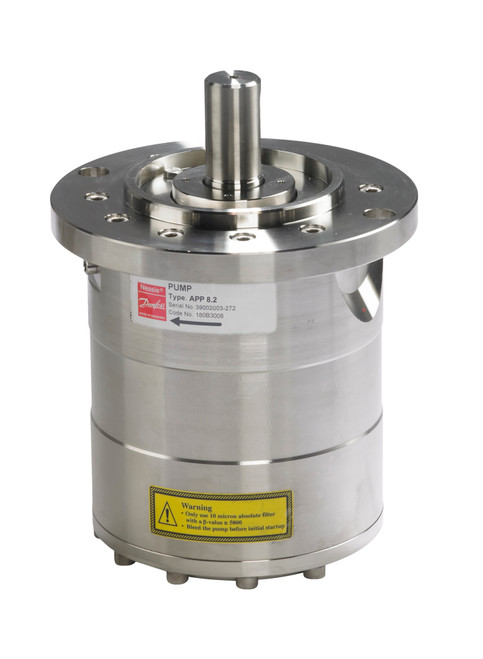

| Part Number | APP 8.2 |
| Type | APP 5.1-10.2 |
| Description | Pump for sea- or brackish water |
| Body Material | Duplex |
| Seal Material | NBR |
| Displacement | 80.4 cm³/rev |
| Max Flow | 36 gal/min |
| Min Flow | 13 gal/min |
| Max Outlet Pressure | 1200 psig |
| Min Outlet Pressure | 290 psig |
| Max Inlet Pressure | 72.5 psig |
| Min Inlet Pressure | 7.3 psig |
| Max Speed | 1800 rpm |
| Min Speed | 700 rpm |
| Inlet Standard | Metric |
| Outlet Standard | Metric |
| Drain Connection | M6 |
| Max Media Temp | 122 °F |
| Min Media Temp | 36 °F |
| Max Ambient Temp | 122 °F |
| Sound Level | 78 dBA |
| Net Weight | 33.969 Kilogram |
| Gross Weight | 36.058 Kilogram |
| Dimensions (L x W x H) | 14,9x11,8x11,8 |
| Approval | CE |
| ATEX | No |
| CE Mark | Yes |
| Country of Origin | Denmark |
| EAN | 5715162667682 |
| Serviceable | Yes |
About Danfoss APP Pumps: Axial piston pumps designed for SWRO desalination. Oil-free, water-lubricated design in Duplex/Super Duplex stainless steel. Up to 92% efficiency. Available from 0.6 to 86 m³/h.
