Commercial Water Softeners
Commercial Water Softener Systems — 30 to 200+ GPM
Commercial water softeners for hotels, restaurants, car washes, laundries, breweries, and industrial facilities with high-volume softening requirements. ForeverPure Place supplies single-tank and twin-alternating (duplex) systems engineered around Fleck and Clack control valves, high-capacity mineral tanks, brine tanks, and premium ion-exchange resin — sized to your flow rate, water hardness, and duty cycle.
How to Size a Commercial Water Softener
Three numbers drive the right system: peak flow (GPM), water hardness (grains per gallon), and daily water use (gallons). Multiply daily gallons by hardness to get the grains removed per day, then choose a grain capacity that lets you regenerate on a sensible schedule. Our team sizes the resin volume and valve flow rating so the softener keeps up with peak demand without channeling or hardness bleed-through.
Working the numbers yourself? Our engineering division publishes the full sizing method — resin capacity in grains per cubic foot, service and backwash flow rates, salt efficiency, and a worked 24,000 gallon-per-day example: ForeverPure Corporation — Commercial Water Softener Systems.
Single-Tank vs Twin-Alternating (Duplex)
- Single-tank, metered — best for facilities that can tolerate a short overnight regeneration window. Lowest cost.

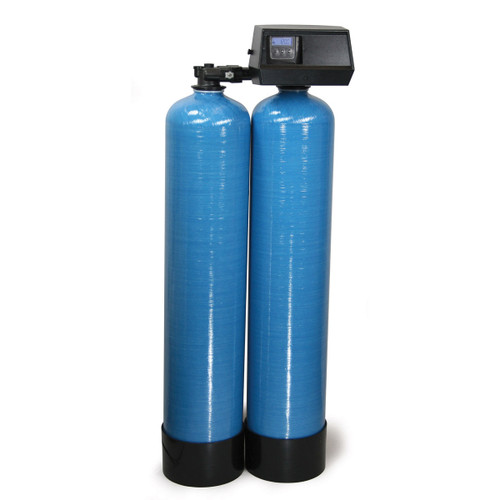

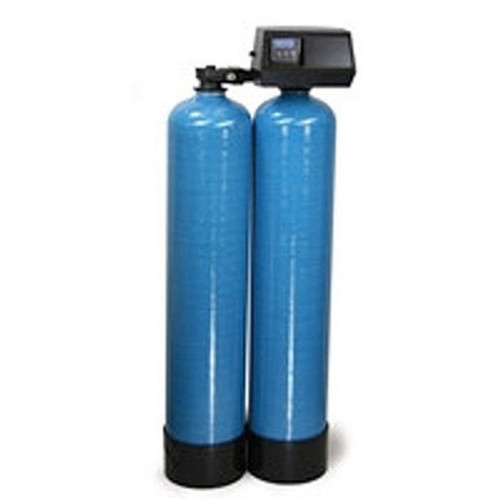

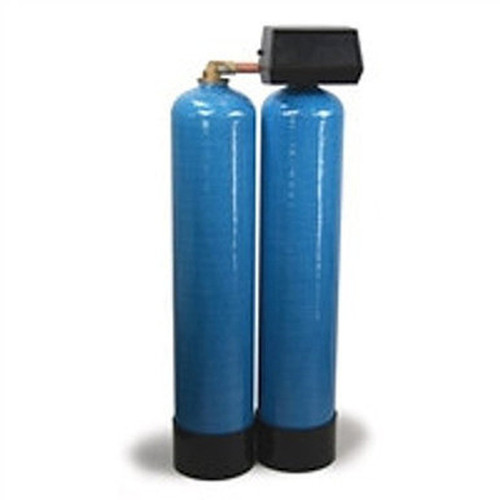

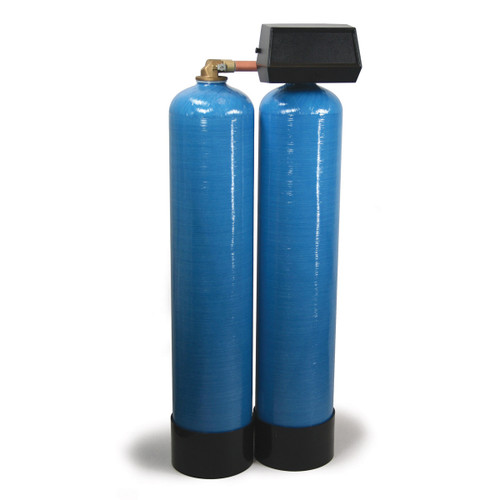

- Twin-alternating (duplex) — delivers continuous soft water 24/7; one tank stays in service while the other regenerates. Required for car washes, laundries, and any process that cannot see hard water.
Applications We Equip
Hospitality (hotels, resorts), food service and restaurants, commercial laundries, car washes, breweries and beverage, cooling-tower makeup, boiler feed pretreatment, and reverse-osmosis pretreatment to protect downstream membranes from scaling.
Build Your System
- Fleck Commercial / Industrial Valves — metered and time-clock control heads
- Softener & Filter Tanks — mineral tanks in every common size
- Resin & Filter Media — cation softening resin and specialty media
- Membrane / Softener Chemicals — salt, cleaners, and resin restorers
- Residential Water Softeners — for light-duty and point-of-entry needs
Frequently Asked Questions
Q: What size commercial water softener do I need?
A: Size on peak GPM and total grains of hardness removed per day. As a rule of thumb, match the valve to your peak flow and the resin volume to at least one full day of capacity between regenerations. Send us your flow rate and a water hardness number and we will spec it. The commercial softener sizing guide on ForeverPure Corporation walks through the calculation step by step.
Q: Do I need a twin-alternating system?
A: If your facility cannot tolerate any interruption in soft water — car washes, laundries, continuous processes — yes. Otherwise a single-tank metered system regenerating overnight is more economical.
Q: Can a softener pretreat my RO system?
A: Yes. Softening ahead of reverse osmosis is one of the most effective ways to prevent calcium and magnesium scaling on RO membranes and extend membrane life.
Sizing Quick Reference
Two numbers size a softener: the grain load it must remove between regenerations, and the flow the resin bed has to pass without channelling. Both have to be checked — on a hotel the grain load usually binds first, on a car wash the flow does.
| Design figure | Working range | What it decides |
|---|---|---|
| Usable resin capacity | 20,000–30,000 grains/ft³ | Resin volume, set by salt dose |
| Salt efficiency | ~3,300 grains/lb at 6 lb/ft³, ~2,000 at 15 lb/ft³ | Running cost and brine volume |
| Service flow | 6–8 gpm per ft³ of resin | Whether hardness bleeds through at peak |
| Backwash flow | 5–7 gpm per ft² of tank area | Whether the bed reclassifies properly |
| Hardness conversion | 1 gpg = 17.1 mg/L as CaCO₃ | Reading a lab report correctly |
Worked example. A hotel using 24,000 gallons a day at 18 gpg removes 24,000 × 18 = 432,000 grains per day. At 25,000 grains/ft³ (a 10 lb/ft³ salt dose) that is 432,000 ÷ 25,000 = 17.3, so 18 ft³ of resin, using about 180 lb of salt per regeneration. At a measured 60 gpm peak the flow check gives 60 ÷ 18 = 3.3 gpm/ft³, comfortably inside the 6–8 range — so on this site capacity sets the design, not hydraulics.
What Drives Operating Cost
- Salt dose is the main lever. Running 6 lb/ft³ instead of 15 lb/ft³ uses roughly 65% less salt per grain removed, at the cost of a larger tank. Where brine discharge is regulated or salt delivery is awkward, size for the lower dose.
- Metered beats timed. A time-clock head regenerates on schedule whether or not capacity is spent; a metered head regenerates on actual volume. On variable-occupancy sites that difference alone is often 20–30% of salt use.
- Resin life. Well-run cation resin lasts many years; it is chlorine and iron fouling, not exhaustion, that usually ends it. Dechlorinate ahead of the softener where the supply is chlorinated.
Applications We Equip
Hotels and resorts, commercial laundries, car washes, breweries and beverage production, food service, cooling-tower makeup, boiler feed pretreatment, and reverse-osmosis pretreatment. Car washes, laundries and continuous processes are the cases that normally justify a twin-alternating (duplex) system rather than a single tank — an hour of hard water reaching the process there costs a wash cycle, a product batch or a membrane.
Q: How do I convert water hardness from mg/L to grains per gallon?
A: Divide mg/L as calcium carbonate by 17.1. Water at 300 mg/L is 17.5 grains per gallon. Laboratory reports use mg/L while softener capacity is rated in grains, so this conversion is needed on almost every job.
Q: How much salt does a commercial water softener use?
A: Salt use equals resin volume multiplied by the salt dose. At 10 lb per cubic foot, an 18 cubic foot softener uses 180 lb per regeneration. Efficiency falls as the dose rises: about 3,300 grains per pound at a 6 lb/ft3 dose against roughly 2,000 grains per pound at 15 lb/ft3.
Q: Why is my softener leaking hardness before it regenerates?
A: Usually flow, not capacity. Sustained service flow above about 8 gpm per cubic foot of resin causes channelling, where water cuts a path through the bed instead of contacting all of it, so hardness passes through while capacity remains. An undersized backwash supply produces the same symptom over time by letting the bed compact and foul.
