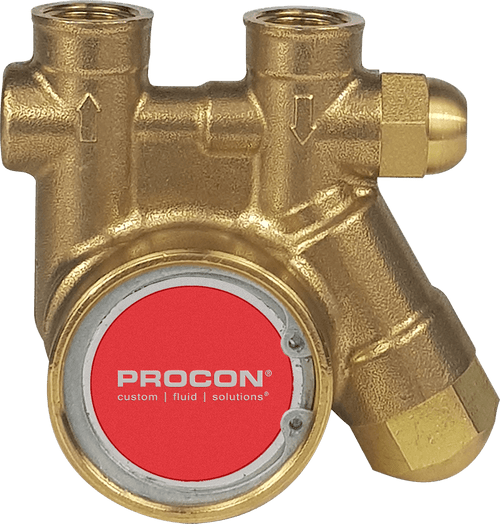

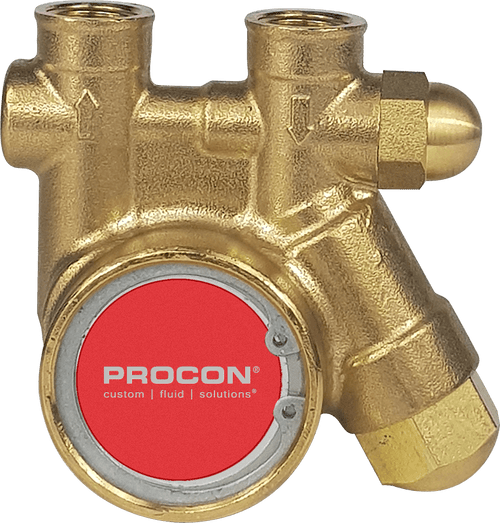

Procon 104A190F11BB Brass Rotary Vane Water Pump, 190 GPH, 100 to 150 PSI

Procon 104A190F11BB Brass Rotary Vane Water Pump, 190 GPH, 100 to 150 PSI

Procon Pump

$302.00
(No reviews yet) Write a Review
SKU:
104A190F11BB
Availability:
Usually Ships in 2 to 3 Weeks
Brand:
Procon
Material:
Brass
Connection-Size:
1/2-inch NPT
Pump-Type:
Rotary Vane
Flow-Rate-GPH:
190 GPH
Application:
Reverse Osmosis, Booster Pump, Desalination (Pre-treated Feed), Circulation, Solar, Hydraulic, Cooling, General
Product-Category:
RO System / Industrial Water
NSF-Lead-Free:
No
Max-Pressure-PSI:
150 PSI
Max Pressure:
150 PSI
Adding to cart… The item has been added
⚙️ TECHNICAL SPECIFICATIONS: Procon 104A190F11BB Brass Rotary Vane Water Pump, 190 GPH, 100 to 150 PSI
SKU / Model104A190F11BB
Product TypeRotary Vane Water Pump
BrandProcon (CEME Group)
SeriesSeries 4
Manifold MaterialBrass
Flow Rate190 GPH (719 LPH) at 1,725 RPM
Max Pressure150 PSI (10 bar)
Max Operating Pressure150 PSI
Port Size1/2-inch NPT
Shaft DriveStandard single flat (5/8")
Speed Range1000RPM - 2400RPM
RotationClockwise
Fluid Temperature-4�F to 160�F (-20°C to 90°C)
Max Viscosity100cP
Max TDS (brass housing)5,000 ppm
Fluid Acidity6pH
Dry Suction Lift3.3ft
Wet Suction Lift6.6ft
Seal TypeMechanical — Carbon / Ceramic or Carbon / Silicon Carbide
ElastomersEPDM (NSF-approved) or Fluorocarbon
Relief ValveSolid- Ultem (Standard-Non External adjust)
Product Weight3.3lb (1.5Kg)
HS Tariff Code84138100
ApprovalsNSF/ANSI 169 food-contact; ROHS compliant
Country of OriginMexico (ISO 9001 certified)
Warranty2 Year Limited Warranty (post-Nov 1993 shipment)

Overview

The Procon 104A190F11BB is a positive-displacement rotary vane water pump manufactured by Procon (CEME Group). Its brass housing is built to deliver 190 GPH (719 LPH) at up to 150 PSI with consistent flow across the entire pressure range. Procon rotary vane pumps are self-priming (water), maintenance-free, and virtually silent, making them a standard component in reverse-osmosis, carbonation, beverage-dispensing, coffee, and cooling systems worldwide.

Typical Applications

Reverse Osmosis, Booster Pump, Desalination (Pre-treated Feed), Circulation, Solar, Hydraulic, Cooling, General

Key Features & Benefits

  • Positive-displacement design delivers consistent flow at variable pressures
  • Self-priming with water; maintenance-free apart from optional strainer cleaning
  • Low starting torque — compatible with standard carbonator motors
  • Quiet operation with low vibration and pulsation (≤ 60 dBA)
  • Brass housing rated for clean fluid service up to 160�F and 100cP viscosity
  • Built to Procon ISO-9001 quality system in Mexico and Ireland

Installation Notes

  • Provide clean, filtered fluid on the suction side. Use a strainer if the source may contain debris.
  • Do not run the pump dry for more than 2 minutes — dry running will damage the internal vanes and mechanical seal.
  • Do not operate against a closed discharge without a relief valve.
  • Suction pressure: positive inlet pressure recommended above 2,400 RPM; minimum 20 PSI inlet is required for Series 6 at full speed.
  • Pump inlet / outlet is 1/2-inch NPT thread.

About Procon

Established in 1948, Procon engineers dependable positive-displacement vane and gear pumps. Part of the CEME Group (acquired by Investindustrial in 2023), Procon operates ISO-9001 certified plants in North America, Europe and Asia Pacific and serves OEMs in 70+ countries. Procon rotary vane pumps are the industry standard in commercial carbonation, espresso, and reverse-osmosis systems.

!
