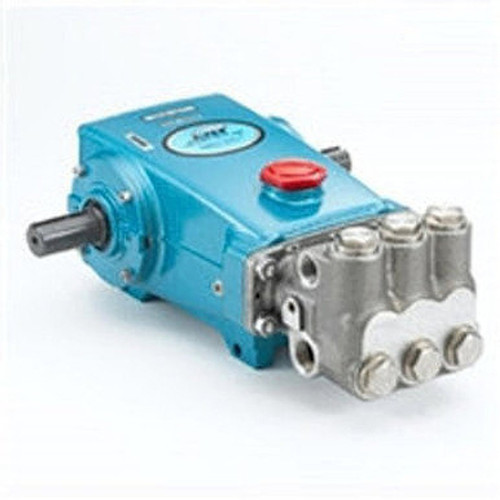

CAT Pumps 1051C.0770 Pump
Genuine Cat Pumps OEM — Cat Pumps Corporation, HQ Minneapolis, MN — supplied by ForeverPure Corporation, an authorized Cat Pumps distributor in Santa Clara, California.
The Cat Pumps 1051C.0770 is a triplex plunger pump in the Cat Pumps 15-Frame Triplex Plunger Pump family, rated for 10 GPM at 2200 PSI. 15-Frame triplex plunger pumps deliver medium-pressure flow in a compact high-efficiency industrial package, widely used across reverse osmosis, car wash, and pressure washing.
Typical Applications & Industries
Common Applications
- Reverse osmosis high-pressure feed
- Car wash systems
- Pressure cleaning
- Agricultural sprayers
- Industrial water blasting
Industries Served
- Water treatment & desalination
- Commercial car wash & detailing
- Agriculture & irrigation
- Oil & gas (produced water)
- Food & beverage processing
- Industrial cleaning & facility services
Documentation & Service
📄 Cat Pumps Data Sheet (PDF)🔧 Cat Pumps Service Manual (PDF)
The data sheet carries the specifications, the exploded view, the numbered parts list and the seal and valve kit tables. The service manual covers installation and start-up, valve and seal servicing, the torque chart and troubleshooting.
Specifications & Dimensions
Overall size: 16.30 x 12.99 x 6.45" (414 x 330 x 164 mm) — weight 44 lbs (20 kg). The shipping weight shown at checkout already allows for packaging.
| Specification | Value | Metric |
|---|---|---|
| Max Flow | 10 gpm / 37.9 lpm | — |
| Max Pressure | 2200 | — |
| RPM | 958 | — |
| Inlet Port Size | 3/4" NPT(F) | — |
| Discharge Port Size | 1/2" NPT(F) | — |
| Drive type | Belt, Clutch | — |
| Material | 316 Stainless Steel | — |
| Inlet pressure range | -5–60 psi | -0.35–4.1 bar |
| Max. liquid temperature (NBR) | 160° F | 71° C |
| Bore | 0.945" | 24 mm |
| Stroke | 1.181" | 30 mm |
| Crankcase capacity | 42 oz | 1.26 l |
| Inlet ports | 3/4" NPT(F) | 3/4" NPT(F) |
| Discharge ports | 1/2" NPT(F) | 1/2" NPT(F) |
| Shaft diameter | 1.181" | 30 mm |
Figures as published by Cat Pumps for this model (1051_H), taken from the row Cat qualifies as “1051,1051C,1051D”. Cat publishes the envelope and the port and shaft interface but no dimensioned outline drawing; ask us if you need one for a skid layout.
Performance & Sizing
The 1051C.0770 is a positive-displacement pump, so it has no flow-versus-pressure curve in the sense a centrifugal pump does, and Cat Pumps does not publish one. Flow is set by the displacement and the shaft speed and stays essentially constant as discharge pressure rises. Pressure is set by the restriction downstream — the nozzle, orifice or membrane array — and capped by the regulating device, not by the pump.
This is a belt-drive frame, so the pulley ratio sets the pump speed. To work out flow at another speed, or to size the drive, use the relations Cat Pumps prints on its data sheets:
| Flow at another speed | Desired GPM = Rated GPM × (Desired RPM ÷ Rated RPM) |
| Required horsepower | HP (electric brake) = GPM × PSI ÷ 1460 |
Rated speed for this model is 958 rpm.
Maximum ratings apply individually — do not assume maximum flow and maximum pressure can be taken together. A primary pressure-regulating device and a secondary safety relief device are both required in the system. Talk to us before ordering if your duty sits near a limit.
Frequently Asked Questions
What is the Cat Pumps 1051C.0770?
The Cat Pumps 1051C.0770 is a triplex plunger pump from the Cat 15-Frame Triplex Plunger Pump family, rated at 10 GPM and 2200 PSI maximum pressure. Cat Pumps are positive-displacement triplex pumps supplied by Cat Pumps Corporation, headquartered in Minneapolis, Minnesota, USA.
What is the Cat Pumps 1051C.0770 used for?
Typical applications include reverse osmosis high-pressure feed, car wash systems, pressure cleaning, agricultural sprayers. Cat Pumps triplex pumps are preferred in continuous-duty industrial service because their positive-displacement plunger or piston design delivers smooth constant flow at high pressure with long service life.
How much does the Cat Pumps 1051C.0770 cost?
Pricing is quote-based and depends on configuration, quantity, and delivery schedule. ForeverPure Corporation, as an authorized Cat Pumps distributor, provides factory-direct pricing with same-day quotes. Call +1-408-969-2688 or use the Request a Quote form.
What parts and service kits are available for the Cat Pumps 1051C.0770?
A full line of genuine Cat Pumps OEM service kits, seals, valves, plungers, and accessories is available. The specific kits compatible with 1051C.0770 depend on the pump's frame, material, and seal material — contact ForeverPure for a cross-reference list and current pricing.
Where is the Cat Pumps 1051C.0770 manufactured?
Cat Pumps Corporation is headquartered in Minneapolis, Minnesota (1681 94th Lane NE, Minneapolis, MN 55449) and has been the Cat Pumps brand owner since 1968. Cat Pumps triplex pumps, spare parts, and accessories are manufactured at the company's US and Japan production facilities to Cat Pumps Corporation's ISO 9001:2015 factory specifications — the country of origin for this specific SKU is listed in the technical specifications table above.
How do I get a quote or datasheet for the Cat Pumps 1051C.0770?
Call ForeverPure Corporation at +1-408-969-2688, email sales@foreverpure.com, or request a quote through the website. As an authorized Cat Pumps distributor, ForeverPure provides factory-direct pricing, datasheets, cross-reference support, and same-day turnaround on most quote requests.
What is the warranty on the Cat Pumps 1051C.0770?
Cat Pumps factory warranty: 1 year on complete pumps, 90 days on parts and accessories, from date of purchase from an authorized distributor. ForeverPure honors and administers Cat Pumps warranty claims for customers in North America.
Recommended Accessories for This Pump
Cat Pumps specifies these accessories for this pump. A regulator or unloader and a relief device are required on any high-pressure system; an inlet filter and the correct crankcase oil are what actually determine how long the pump lasts.
| Accessory | Cat Pumps part |
|---|---|
| SS Pressure Regulator | 7013.100 |
| SS Multiple Gun Pressure Unloader | 7533 |
| SS Pop-Off Valve | 9941 |
| Pulsation Dampener-Rechargeable-NBR | 6031 |
| SS Pressure Gauge | 6097 |
| Crankcase Oil | 6107 |
| Oil Drain Kit | 34334 |
| Inlet Filter | 7105.5 |
| Inlet Pressure Stabilizer | 711500 |
| Gun - Stainless Steel Shut-Off | 36126 |
| LPS Monitor | 30664 |
Accessory pairings as published by Cat Pumps for this model. Not sure which you need? Send us your duty point and we will specify the set.
