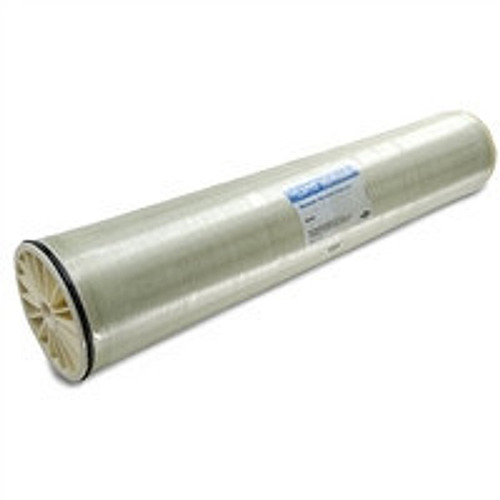

TECHNICAL SPECIFICATIONS: FilmTec™ Hypershell™ RO-390
| SKU / Model | HYPERSHELL-RO-390 |
| Product Type | Hypershell™ Membrane Element |
| Membrane Type | Hypershell™ RO |
| Active Area | 390 ft² (36 m²) |
| Permeate Flow Rate | 8,500 GPD (32.2 m³/d) |
| Stabilized Salt Rejection | 99.7% |
| Minimum Salt Rejection | 99.5% |
Operating Conditions
| Maximum Operating Pressure | 600 psi (41 bar) |
| Maximum Operating Temperature | 113°F (45°C) |
| Maximum Feed Flow Rate | 75 GPM (17 m³/h) |
| Maximum Pressure Drop | 15 psi (1.0 bar) |
| pH Range, Continuous Operation | 2 – 11 |
| pH Range, Short-Term Cleaning | 1 – 13 |
| Maximum Feed SDI | SDI 5 |
| Free Chlorine Tolerance | < 0.1 ppm |
Dimensions & Weight
| Element Diameter | 7.9 in (201 mm) |
| Element Length | 40.0 in (1,016 mm) |
| Weight (Dry) | 35 lb (16 kg) |
| Weight (Wet) | 42 lb (19 kg) |
Applications
- Seawater desalination
- Industrial water treatment
- Power generation
- Municipal water treatment
Key Advantages
- Hypershell™ technology for enhanced durability
- Optimized for high-performance applications
- Robust construction for demanding environments
Test Conditions: 2,000 ppm NaCl, 225 psi (15.5 bar), 77°F (25°C), pH 8, 15% recovery
Specifications provided by DuPont Water Solutions. Contact ForeverPure for pricing and availability.
