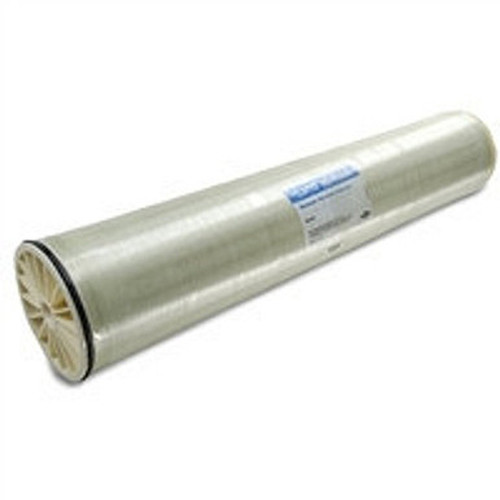

TECHNICAL SPECIFICATIONS: FilmTec™ Hypershell™ NF-3838/30-FF
| SKU / Model | NF-3838/30-FF |
| Product Type | Hypershell™ Nanofiltration Element |
| Membrane Type | Hypershell™ NF |
| Active Area | 300 ft² (28 m²) |
| Permeate Flow Rate | 9,500 GPD (36.0 m³/d) |
| Stabilized Salt Rejection | > 97% MgSO4 |
Operating Conditions
| Maximum Operating Pressure | 600 psi (41 bar) |
| Maximum Operating Temperature | 113°F (45°C) |
| Maximum Feed Flow Rate | 75 GPM (17 m³/h) |
| Maximum Pressure Drop | 15 psi (1.0 bar) |
| pH Range, Continuous Operation | 2 – 11 |
| pH Range, Short-Term Cleaning | 1 – 13 |
| Maximum Feed SDI | SDI 5 |
| Free Chlorine Tolerance | < 0.1 ppm |
Dimensions & Weight
| Element Diameter | 7.9 in (201 mm) |
| Element Length | 30.0 in (762 mm) |
| Weight (Dry) | 25 lb (11 kg) |
| Weight (Wet) | 30 lb (14 kg) |
Applications
- Municipal drinking water production
- Surface water treatment and softening
- Organic (NOM) removal
- Industrial process water
- Industrial softening
- Organic removal
Key Advantages
- Hypershell™ technology for enhanced durability
- Optimized for high-performance applications
- Robust construction for demanding environments
- Nanofiltration for selective removal
Test Conditions: 2,000 ppm MgSO4, 70 psi (4.8 bar), 77°F (25°C), pH 8, 15% recovery
Specifications provided by DuPont Water Solutions. Contact ForeverPure for pricing and availability.
