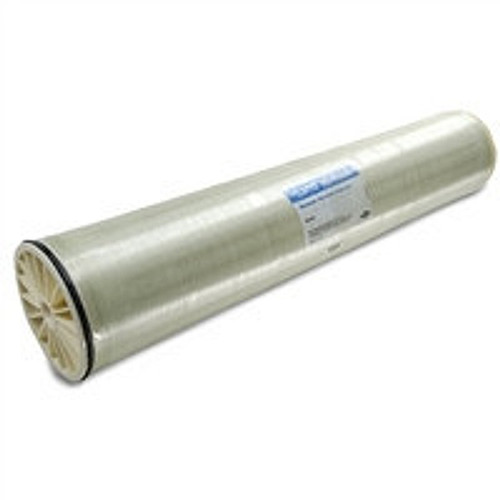

TECHNICAL SPECIFICATIONS: FilmTec™ SWBR-150i
| SKU / Model | SWBR-150I |
| Product Type | Seawater Brine Recovery Element |
| Membrane Type | Thin-Film Composite (TFC) - SWBR |
| Active Area | 370 ft² (34 m²) |
| Permeate Flow Rate | 5,400 GPD (20.4 m³/d) |
| Stabilized Salt Rejection | 99.70% |
| End Cap Type | iLEC™ Interlocking End Caps |
Operating Conditions
| Maximum Operating Pressure | 1,200 psi (83 bar) |
| Maximum Operating Temperature | 113°F (45°C) |
| Maximum Feed Flow Rate | 75 GPM (17 m³/h) |
| Maximum Pressure Drop | 15 psi (1.0 bar) |
| pH Range, Continuous Operation | 2 – 11 |
| pH Range, Short-Term Cleaning | 1 – 13 |
| Maximum Feed SDI | SDI 5 |
| Free Chlorine Tolerance | < 0.1 ppm |
Dimensions & Weight
| Element Diameter | 7.9 in (201 mm) |
| Element Length | 40.0 in (1,016 mm) |
| Weight (Dry) | 35 lb (16 kg) |
| Weight (Wet) | 42 lb (19 kg) |
Applications
- SWRO brine recovery (2nd/3rd pass)
- High-salinity water treatment
- Resource recovery from brine
- Desalination system efficiency improvement
Key Advantages
- Designed for high-salinity brine feeds
- Increases overall system recovery
- Robust construction for demanding conditions
Test Conditions: 32,000 ppm NaCl, 800 psi (55 bar), 77°F (25°C), pH 8, 8% recovery
Specifications provided by DuPont Water Solutions. Contact ForeverPure for pricing and availability.
