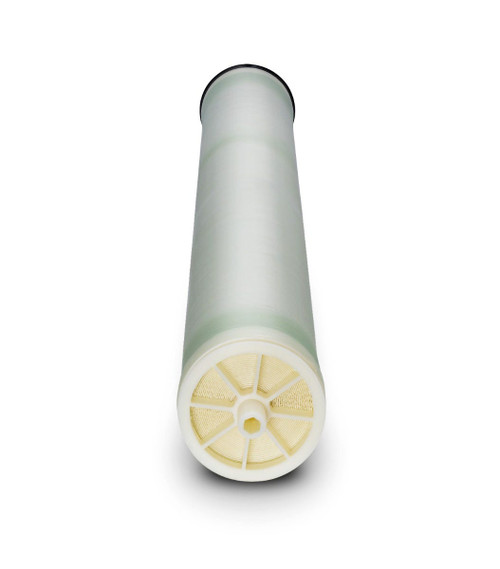

TapWater Commercial Reverse Osmosis Element
325Permeate flow, gpd
99.5%Stabilized rejection
600Max pressure, psi
Specifications
| Max Operating Pressure (psi) | 600 |
|---|---|
| Max Operating Temperature (F) | 113 |
| pH Range, continuous | 2 - 11 |
| pH Range, cleaning | 1 - 13 |
| Max Feed Silt Density Index | 5 |
| Free Chlorine Tolerance (ppm) | < 0.1 |
| Diameter (in) | 2.5 |
| Stabilized Salt Rejection (%) | 99.5 |
| Permeate Flow (GPD) | 325 |
| Length (in) | 21.0 |
| Min/Max cleaning pH | 1-13 |
| Membrane Type | Tapwater |
| Max dP (psi) | 13.0 |
| Max Feed Flow Rate (gpm) | 6.0 |
| Applied Pressure (psi) | 225 |
| Application | Commercial Water Treatment, Food Service, Hospitality, Laboratory |
Values as published by DuPont in Form 45-D01525-en Rev 4, October 2024.
Supplied as
Dry
About this technology
A spiral-wound thin-film composite element: feed flows along the membrane under pressure, permeate passes through, and the concentrate carries the rejected salts away. Our RO and nanofiltration element guide covers selection, operating limits and the questions that decide which grade fits a duty.
Common questions
What are the published specifications for FilmTec TW30 2521?
DuPont publishes the following in Form 45-D01525-en Rev 4, October 2024:
Max Operating Pressure (psi): 600; Max Operating Temperature (F): 113; pH Range, continuous: 2 - 11; pH Range, cleaning: 1 - 13; Max Feed Silt Density Index: 5; Free Chlorine Tolerance (ppm): < 0.1; Diameter (in): 2.5; Stabilized Salt Rejection (%): 99.5.
What warranty applies?
None. DuPont's Product Data Sheets state "NO WARRANTIES ARE GIVEN" and expressly exclude
merchantability and fitness for a particular purpose, because performance depends on feed water and
operating conditions they do not control. Full statement.
Confirm suitability for your duty before ordering.
Quoted, not listed. We are a B2B supplier and price
this item to your requirement and volume. Email sales@foreverpureplace.com
or call 408-969-2688 with the model and quantity.
FilmTec is a DuPont trademark. Manufacturer's published
values, Form 45-D01525-en Rev 4; subject to change without notice.
