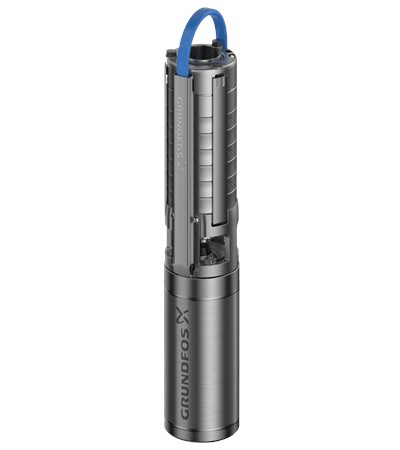

The Grundfos 16S05-5 (product number 96584810) is a stainless steel submersible groundwater pump supplied complete with motor, rated 16 US gpm nominal flow, 5 stages, a 1/2 HP submersible motor.
Pump & Hydraulic Data
| Model | 16S05-5 |
| Nominal flow | 16 US gpm |
| Stages | 5 |
| Minimum well diameter | 4" minimum |
| Discharge connection | 1¼" NPT |
| Pump orientation | Vertical, submersible |
Values decoded from the Grundfos type designation. Full head/flow curve and NPSH data for this configuration are available on request.
Motor & Electrical
| Rated power | 1/2 HP |
| Phase | Three-phase |
| Voltage | 460 V |
| Frequency | 60 Hz |
| Motor type | Grundfos submersible, supplied with pump |
Materials & Construction
| Pump material | AISI 304 stainless steel |
| Construction | Sand-resistant, corrosion-resistant stainless steel |
| Built-in check valve | Yes — standard on SP |
Weights & Identification
| Net weight | 21.1 lb |
| Gross (shipping) weight | 23.7 lb |
| Shipping dimensions (L × W × H) | 31.5 × 4.7 × 4.3 in |
| Grundfos product number | 96584810 |
| EAN | 5700831508670 |
| Material pricing group | WH |
Typical Applications
Groundwater supply from drilled wells • municipal and rural water supply • irrigation and agriculture • pressure boosting • reverse osmosis and membrane filtration feed • industrial process water • mine dewatering.
