The Grundfos 16S15-14 (product number 10154514) is a SP3A stainless steel submersible well pump rated 17.6 US gpm at 285.4 ft across 14 stages, supplied complete with a three-phase Grundfos submersible motor.

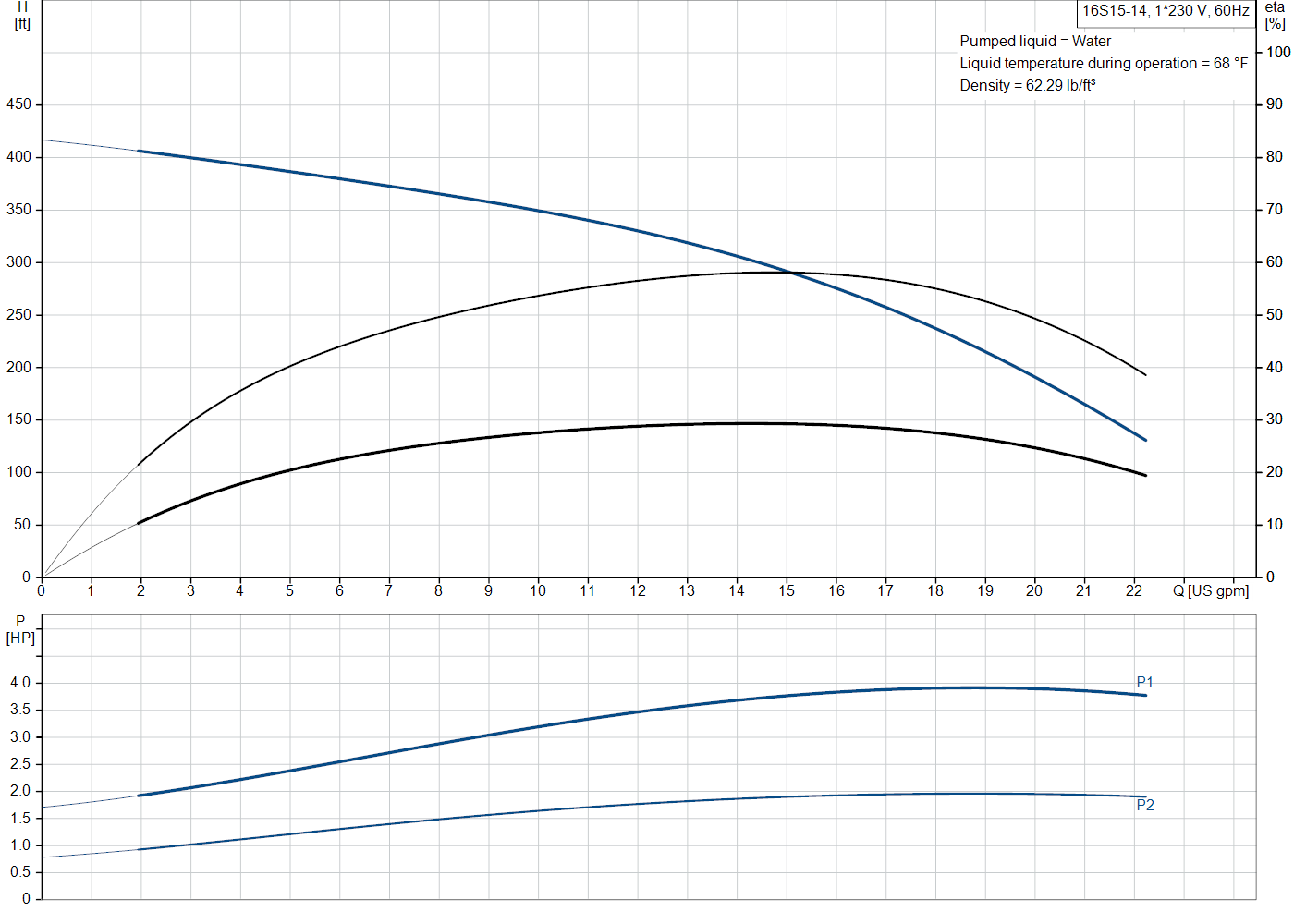

Performance Curve
Official Grundfos curve — 60 Hz, water at 68 °F. Head (H) and efficiency (η) against flow (Q); lower chart shows power and NPSH required.
Performance & Hydraulic Data
| Rated flow | 17.6 US gpm |
| Rated head | 285.4 ft |
| Stages | 14 |
| Pump speed (data basis) | 3450 rpm |
| Pump type | SP3A |
| US designation | SP3A-14 |
| Maximum operating pressure | 217.56 psi |
| Maximum outlet pressure | 187.1 psi |
| Built-in return valve | Yes |
| Curve tolerance | ISO9906:2012 3B |
Materials of Construction
| Pump housing | Stainless steel — EN 1.4301 — AISI 304 |
| Impellers | Stainless steel — EN 1.4301 — AISI 304 |
Installation & Connections
| Discharge connection | 1 1/4 NPT(F) |
| Motor diameter | 4 inch |
| Minimum borehole diameter | 4.13 in |
| Overall length | 31.3 in |
| Liquid temperature range | 5 °F to 104 °F |
Motor & Electrical Data
| Voltage & phase | 230 V, three-phase |
| Frequency | 60 Hz |
| Enclosure class | IP68 |
| Motor cable | 3.94 ft |
| Matching control box | 91126212 |
| Grundfos motor number | 79453105 |
Approvals, Weights & Identification
| Approvals | CULDWUS,CCSAUS |
| Drinking water | PROP65 |
| Grundfos product number | 10154514 |
| Pump-end number | 10010014 |
| EAN | 5700830274682 |
| Net weight (pump + motor) | 34.5 lb |
| Gross (shipping) weight | 49.0 lb |
| Country of origin | MX |
| HS / customs tariff code | 8413.70.2004 |
Typical Applications
Well and borehole water supply • groundwater abstraction • irrigation • pressure boosting • livestock and rural water • industrial process water.
