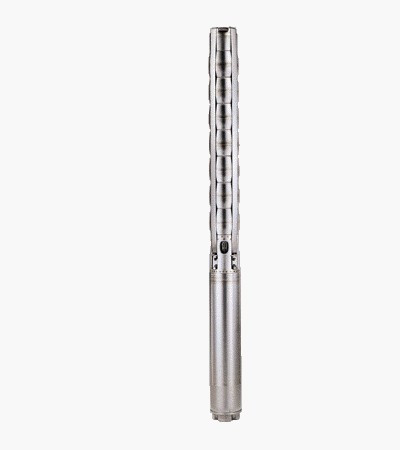

The Grundfos 45S20-5 (product number 98924439) is a SP9 stainless steel submersible well pump rated 47.1 US gpm at 118.8 ft across 5 stages, supplied complete with a three-phase Grundfos submersible motor.

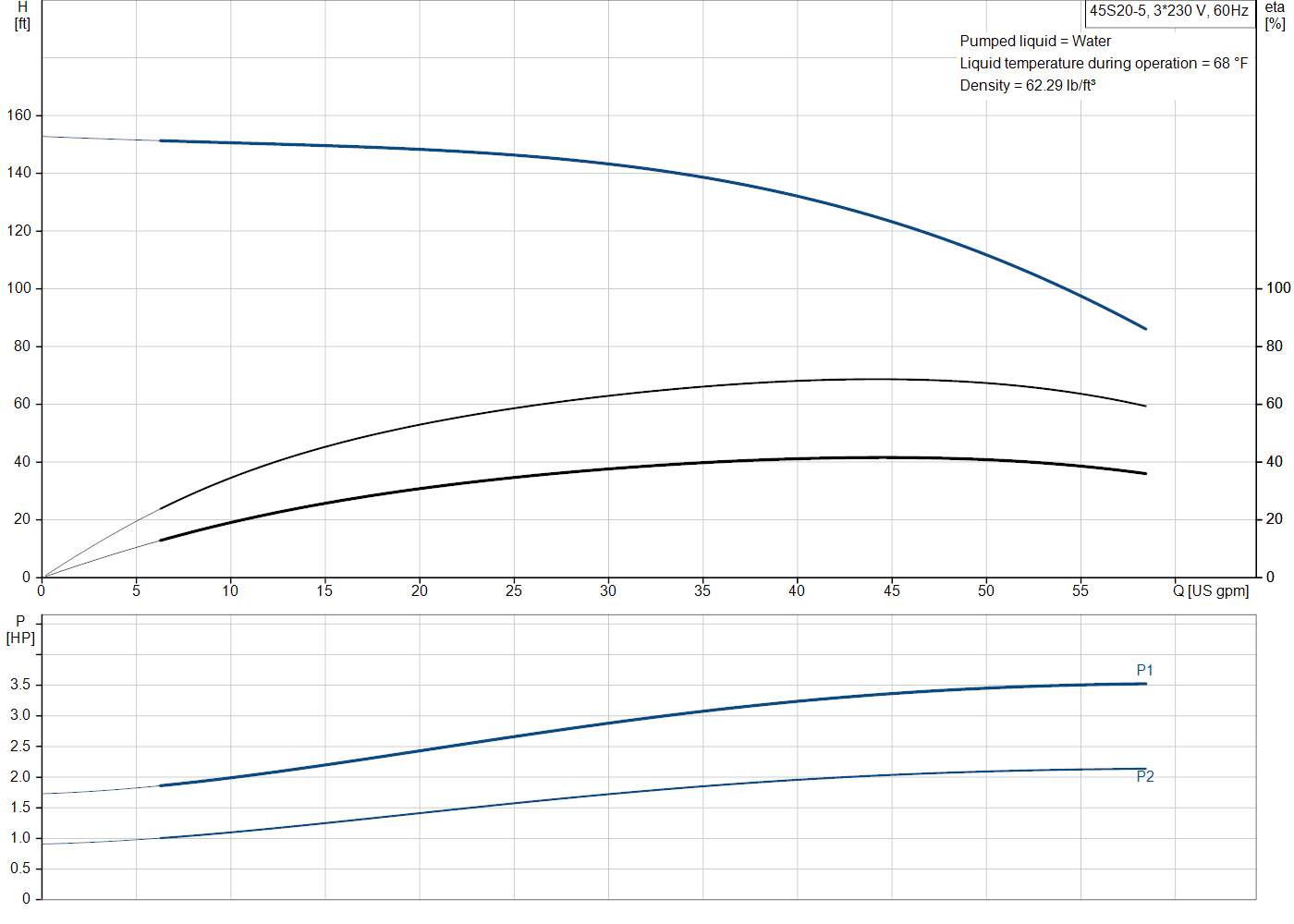

Performance Curve
Official Grundfos curve — 60 Hz, water at 68 °F. Head (H) and efficiency (η) against flow (Q); lower chart shows power and NPSH required.
Performance & Hydraulic Data
| Rated flow | 47.1 US gpm |
| Rated head | 118.8 ft |
| Stages | 5 |
| Pump speed (data basis) | 3450 rpm |
| Pump type | SP9 |
| US designation | SP9-5 |
| Maximum operating pressure | 217.56 psi |
| Maximum outlet pressure | 68.17 psi |
| Built-in return valve | Yes |
| Curve tolerance | ISO9906:2012 3B |
Materials of Construction
| Pump housing | Stainless steel — EN 1.4301 — AISI 304 |
| Impellers | Stainless steel — EN 1.4301 — AISI 304 |
Installation & Connections
| Discharge connection | 2 NPT(F) |
| Motor diameter | 4 inch |
| Minimum borehole diameter | 4.13 in |
| Overall length | 33 in |
| Liquid temperature range | 5 °F to 104 °F |
Motor & Electrical Data
| Voltage & phase | 230 V, three-phase |
| Frequency | 60 Hz |
| Enclosure class | IP68 |
| Grundfos motor number | 96465630 |
Approvals, Weights & Identification
| Approvals | CULDWUS,CCSAUS |
| Drinking water | PROP65 |
| Grundfos product number | 98924439 |
| EAN | 5712603663241 |
| Net weight (pump + motor) | 37.9 lb |
| Gross (shipping) weight | 53.4 lb |
| Country of origin | United States |
| HS / customs tariff code | 8413.70.2004 |
Typical Applications
Well and borehole water supply • groundwater abstraction • irrigation • pressure boosting • livestock and rural water • industrial process water.
