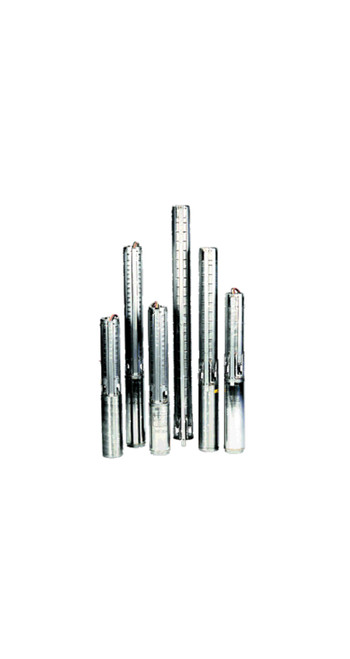

The Grundfos 475N1000-9 (product number 19750009) is a SP95 stainless steel submersible pump end rated 498 US gpm at 508.6 ft across 9 stages. This is the bare pump end only — it is supplied without a motor and requires a 100 HP submersible motor with a 8″ NEMA flange.
Pump end only — motor not included. Requires a separately ordered 100 HP Grundfos submersible motor. Contact us if you need the complete pump-and-motor assembly.
Performance Curve
Official Grundfos curve — 60 Hz, water at 68 °F. Head (H) and efficiency (η) against flow (Q); lower chart shows power and NPSH required.
Performance & Hydraulic Data
| Rated flow | 498 US gpm |
| Rated head | 508.6 ft |
| Stages | 9 |
| Pump speed (data basis) | 3450 rpm |
| Pump type | SP95 |
| US designation | SP95-9N |
| Maximum operating pressure | 870.23 psi |
| Maximum outlet pressure | 279.92 psi |
| Built-in return valve | Yes |
| Curve tolerance | ISO9906:2012 3B |
Materials of Construction
| Pump housing | Stainless steel — EN 1.4401 — AISI 316 |
| Impellers | Stainless steel — EN 1.4401 — AISI 316 |
Installation & Connections
| Discharge connection | 6 NPT(F) |
| Motor diameter | 8 inch |
| Minimum borehole diameter | 8.11 in |
| Overall length | 65.1 in |
| Liquid temperature range | 5 °F to 140 °F |
Motor Requirement
| Motor required (not included) | 100 HP |
| Motor flange | Grundfos |
| Frequency | 60 Hz |
Approvals, Weights & Identification
| Approvals | CCSAUS |
| Drinking water | PROP65 |
| Grundfos product number | 19750009 |
| EAN | 5711496938689 |
| Net weight (pump end only) | 144 lb |
| Gross (shipping) weight | 232 lb |
Typical Applications
Well and borehole water supply • groundwater abstraction • irrigation • pressure boosting • livestock and rural water • industrial process water.
