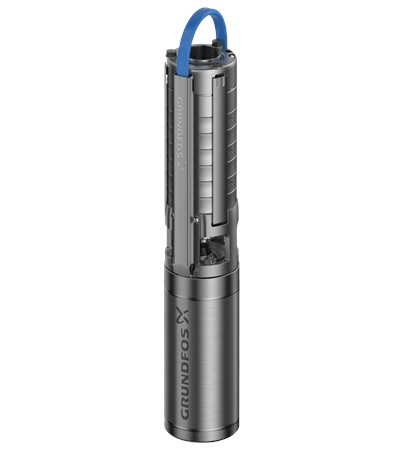

The Grundfos 5S05-13 (product number 99819956) is a stainless steel submersible groundwater pump supplied complete with motor, rated 5 US gpm nominal flow, 13 stages, a 1/2 HP submersible motor.
Pump & Hydraulic Data
| Model | 5S05-13 |
| Nominal flow | 5 US gpm |
| Stages | 13 |
| Pump orientation | Vertical, submersible |
Values decoded from the Grundfos type designation. Full head/flow curve and NPSH data for this configuration are available on request.
Motor & Electrical
| Rated power | 1/2 HP |
| Motor type | Grundfos submersible, supplied with pump |
Materials & Construction
| Pump material | AISI 304 stainless steel |
| Construction | Sand-resistant, corrosion-resistant stainless steel |
| Built-in check valve | Yes — standard on SP |
Weights & Identification
| Net weight | 26 lb |
| Gross (shipping) weight | 28.9 lb |
| Shipping dimensions (L × W × H) | 4.5 × 4.5 × 30.2 in |
| Grundfos product number | 99819956 |
| EAN | 5713834743085 |
| Material pricing group | WH |
Typical Applications
Groundwater supply from drilled wells • municipal and rural water supply • irrigation and agriculture • pressure boosting • reverse osmosis and membrane filtration feed • industrial process water • mine dewatering.
Need the performance curve, NPSH data, or help matching this pump to your well depth and duty point? Contact ForeverPure Place — we will pull the factory data for this exact configuration and confirm lead time.
