The Grundfos 62S15-4 (product number 98924465) is a SP11 stainless steel submersible well pump rated 57.7 US gpm at 83.67 ft across 4 stages, supplied complete with a three-phase Grundfos submersible motor.

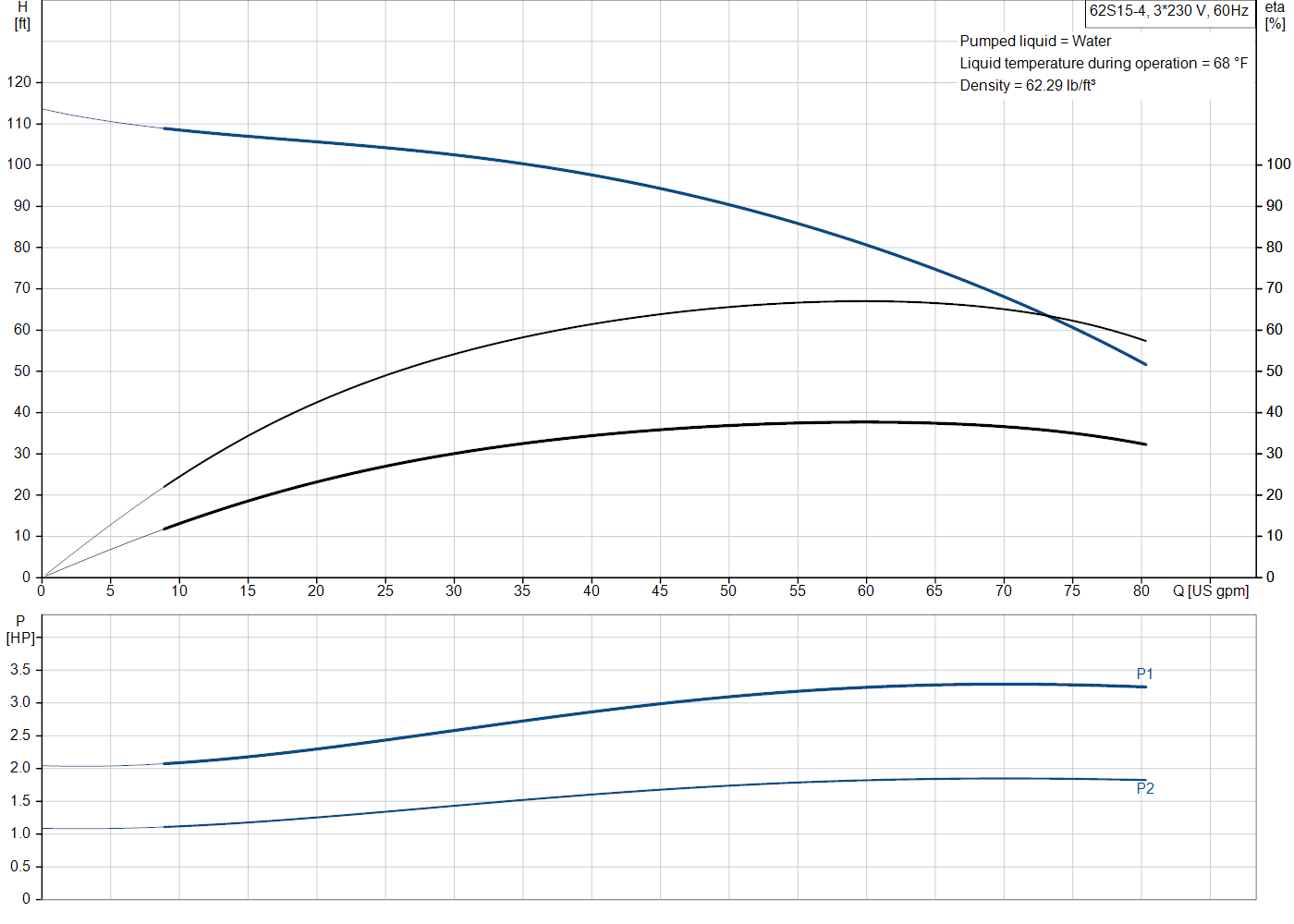

Performance Curve
Official Grundfos curve — 60 Hz, water at 68 °F. Head (H) and efficiency (η) against flow (Q); lower chart shows power and NPSH required.
Performance & Hydraulic Data
| Rated flow | 57.7 US gpm |
| Rated head | 83.67 ft |
| Stages | 4 |
| Pump speed (data basis) | 3450 rpm |
| Pump type | SP11 |
| US designation | SP11-4 |
| Maximum operating pressure | 217.56 psi |
| Maximum outlet pressure | 50.76 psi |
| Built-in return valve | Yes |
| Curve tolerance | ISO9906:2012 3B |
Materials of Construction
| Pump housing | Stainless steel — EN 1.4301 — AISI 304 |
| Impellers | Stainless steel — EN 1.4301 — AISI 304 |
Installation & Connections
| Discharge connection | 2 NPT(F) |
| Motor diameter | 4 inch |
| Minimum borehole diameter | 4.13 in |
| Overall length | 33.3 in |
| Liquid temperature range | 5 °F to 104 °F |
Motor & Electrical Data
| Voltage & phase | 230 V, three-phase |
| Frequency | 60 Hz |
| Enclosure class | IP68 |
| Grundfos motor number | 96465629 |
Approvals, Weights & Identification
| Approvals | CULDWUS,CCSAUS |
| Drinking water | PROP65 |
| Grundfos product number | 98924465 |
| EAN | 5712603663746 |
| Net weight (pump + motor) | 34.9 lb |
| Gross (shipping) weight | 49.5 lb |
| Country of origin | United States |
| HS / customs tariff code | 8413.70.2004 |
Typical Applications
Well and borehole water supply • groundwater abstraction • irrigation • pressure boosting • livestock and rural water • industrial process water.
