The Grundfos 90S30-3 (product number 93050622) is a SP18 stainless steel submersible well pump rated 96.9 US gpm at 101.7 ft across 3 stages, supplied complete with a 3 HP three-phase Grundfos MS4000 submersible motor.

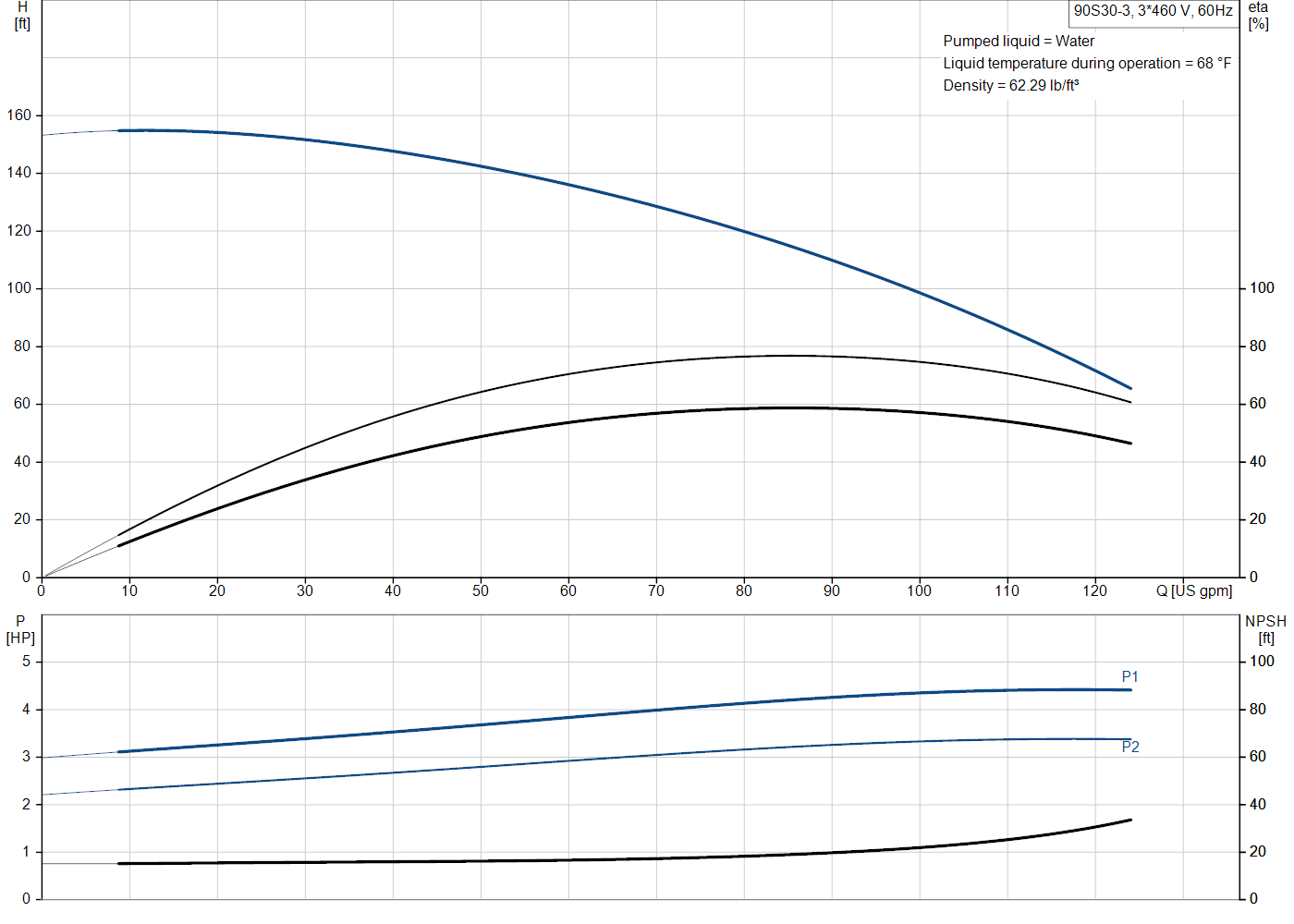

Performance Curve
Official Grundfos curve — 60 Hz, water at 68 °F. Head (H) and efficiency (η) against flow (Q); lower chart shows power and NPSH required.
Performance & Hydraulic Data
| Rated flow | 96.9 US gpm |
| Rated head | 101.7 ft |
| Stages | 3 |
| Pump speed (data basis) | 3450 rpm |
| Pump type | SP18 |
| US designation | SP18-3 |
| Maximum operating pressure | 870.23 psi |
| Maximum outlet pressure | 69.62 psi |
| Built-in return valve | Yes |
| Maximum axial load | 992 lb |
| Curve tolerance | ISO9906:2012 3B |
Materials of Construction
| Pump housing | Stainless steel — EN 1.4301 — AISI 304 |
| Impellers | Stainless steel — EN 1.4301 — AISI 304 |
| Motor shell | Stainless steel — EN 1.4301 — AISI 304 |
| Motor shaft seal | HM/Ceramics |
Installation & Connections
| Discharge connection | 3 NPT(F) |
| Motor diameter | 4 inch |
| Minimum borehole diameter | 5.51 in |
| Overall length | 35.5 in |
| Liquid temperature range | 5 °F to 104 °F |
Motor & Electrical Data
| Motor type | Grundfos MS4000 submersible |
| Rated power (P2) | 3 HP |
| Voltage & phase | 440-460-480 V, three-phase |
| Frequency | 60 Hz |
| Rated speed | 3470-3480-3490 rpm |
| Rated current | 5.3-5.5-5.8 A |
| Locked-rotor current | 500-510-500 % |
| Power factor (cos φ) | 0.76-0.74-0.65 |
| Service factor | 1.15 |
| Method of starting | Direct-on-line (DOL) |
| Thermal protection | External |
| Enclosure class | IP68 |
| Insulation class | F |
| Motor cable | 8.2 ft |
| Grundfos motor number | 7C192507 |
Approvals, Weights & Identification
| Approvals | CULDWUS,CCSAUS |
| Drinking water | PROP65 |
| Grundfos product number | 93050622 |
| EAN | 5715467047806 |
| Net weight (pump + motor) | 52.7 lb |
| Gross (shipping) weight | 75.8 lb |
Typical Applications
Well and borehole water supply • groundwater abstraction • irrigation • pressure boosting • livestock and rural water • industrial process water.
