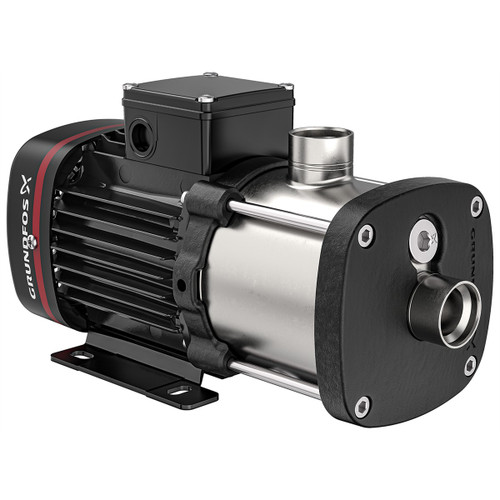

The Grundfos CM 15-1 is a horizontal multistage centrifugal pump (Grundfos part number 96943299). It is rated at 3.4 HP, three-phase 208-230/440-480V, 60 Hz, and features all AISI 316 stainless steel construction for aggressive or high-purity media with an AQQE shaft seal (carbon / silicon-carbide faces, EPDM elastomers).
Specifications
| Model | CM 15-1 |
|---|---|
| Grundfos part number | 96943299 |
| Pump type | Horizontal multistage centrifugal pump |
| Power | 3.4 HP |
| Electrical | Three-phase, 208-230/440-480V, 60 Hz |
| Construction | all AISI 316 stainless steel construction for aggressive or high-purity media |
| Shaft seal | AQQE shaft seal (carbon / silicon-carbide faces, EPDM elastomers) |
| Shipping weight | 65.0 lb |
| Shipping dimensions (W×H×L) | 17 × 9 × 19 in |
Applications
The Grundfos CM 15-1 is used for municipal and private water supply, pressure boosting, water treatment and filtration, washing and cleaning systems, cooling and air-conditioning, and general industrial liquid transfer.
About this pump
Grundfos CM/CME horizontal multistage pumps deliver high efficiency in a compact, in-line footprint. The CM 15-1 ships as a complete unit with motor. For help selecting the correct model, number of stages, or materials for your application, contact ForeverPure Place for a quote.
