The Grundfos CM 5-8 (product number 97568440) is a CM stainless steel submersible well pump rated 24.8 US gpm at 294.8 ft, supplied complete with a three-phase Grundfos submersible motor.
Performance Curve

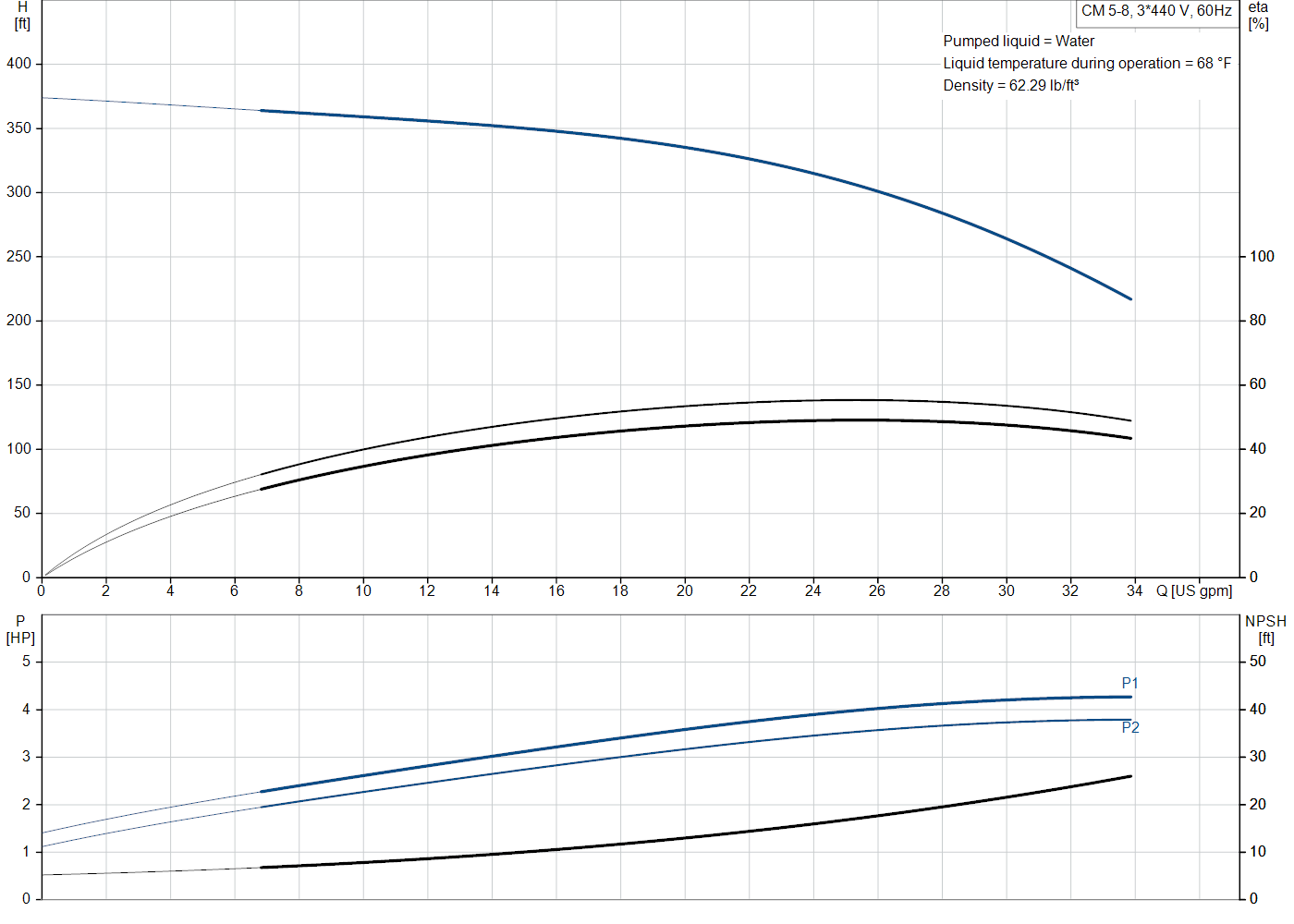

Official Grundfos curve — 60 Hz, water at 68 °F. Head (H) and efficiency (η) against flow (Q); lower chart shows power and NPSH required.
Performance & Hydraulic Data
| Rated flow | 24.8 US gpm |
| Rated head | 294.8 ft |
| Pump speed (data basis) | 3480 rpm |
| Pump type | CM |
| Maximum operating pressure | 232.06 psi |
| Curve tolerance | ISO9906:2012 3B |
Materials of Construction
| Impellers | Stainless steel — EN 1.4401 — AISI 316 |
Installation & Connections
| Discharge connection | NPT(F) |
| Liquid temperature range | -4 °F to 194 °F |
Motor & Electrical Data
| Voltage & phase | 220-230YY/440-480Y V, three-phase |
| Frequency | 60 Hz |
| Rated speed | 3520-3530 rpm |
| Rated current | 14.8-14.2/7.2-7.0 A |
| Service factor | 1.00 |
| Enclosure class | IP55 |
| Insulation class | F |
Approvals, Weights & Identification
| Approvals | CE,CULUS,EAC,CURUS,UKCA |
| Drinking water | WRAS,ACS,NSF61,UBA |
| Grundfos product number | 97568440 |
| EAN | 5700318670012 |
| Net weight (pump + motor) | 72.5 lb |
| Gross (shipping) weight | 101.4 lb |
| Country of origin | MX |
| HS / customs tariff code | 8413.70.2040 |
Typical Applications
Well and borehole water supply • groundwater abstraction • irrigation • pressure boosting • livestock and rural water • industrial process water.
