The Grundfos CR 10-12 (product number 99917214, type key A-GJ-A-V-HQQV) is a 12-stage vertical multistage centrifugal pump rated 53.3 US gpm at 446.5 ft, driven by a 10 HP motor.
Performance & Hydraulic Data
| Rated flow | 53.3 US gpm |
| Rated head | 446.5 ft |
| Maximum head | 577.5 ft |
| Stages / impellers | 12 / 12 |
| Reduced-diameter impellers | 0 |
| Rated pump speed | 3470 rpm |
| Maximum operating pressure | 362.59 psi |
| Max pressure at temperature | 363 / 194 psi / °F |
| Pump orientation | Vertical |
| Low NPSH version | No |
| Curve tolerance | ISO9906:2012 3B |

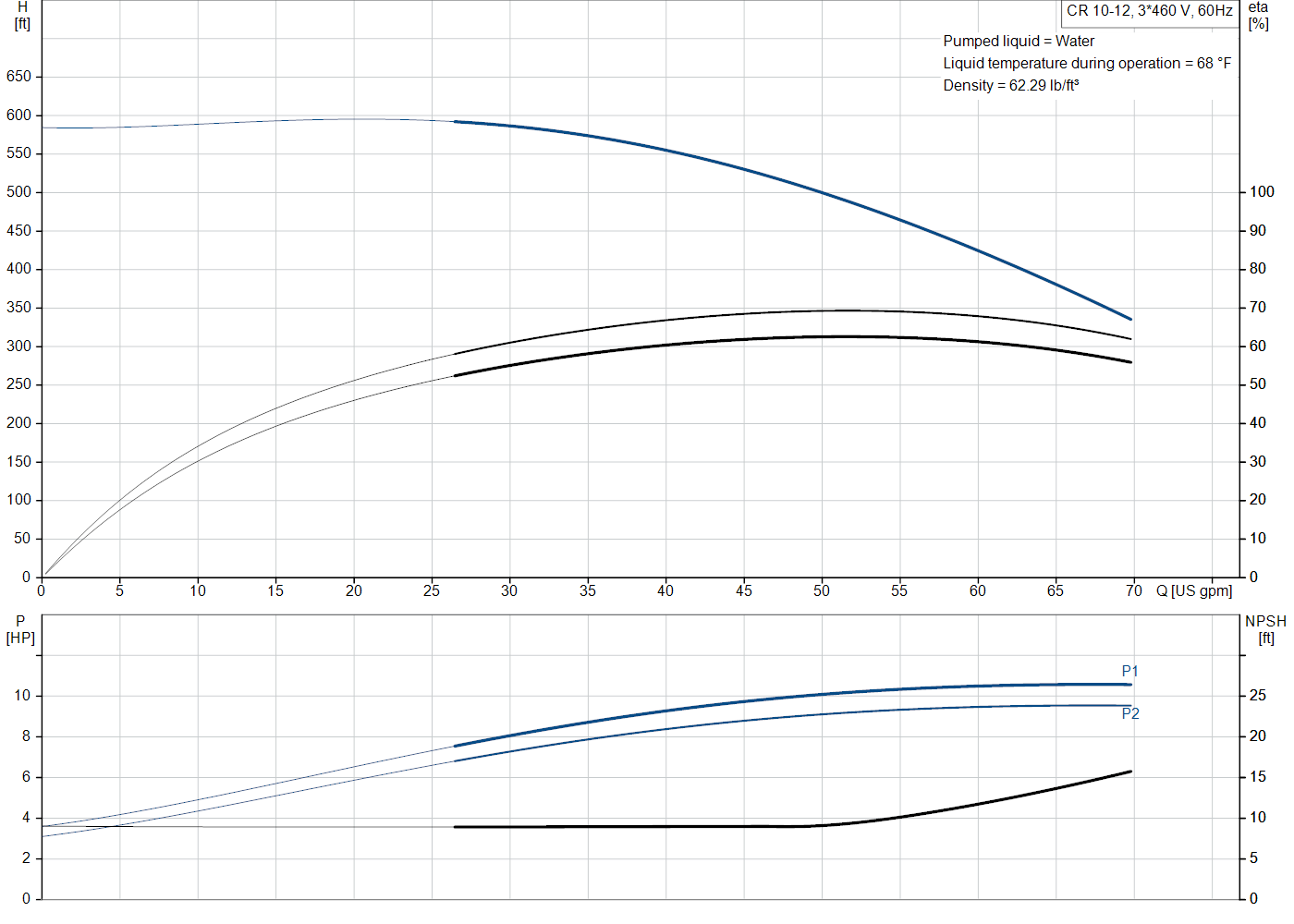

Performance Curve
Official Grundfos curve — 60 Hz, water at 68 °F. Upper chart: head (H) and efficiency (η) against flow (Q). Lower chart: power draw (P1 input / P2 shaft) and NPSH required.
Materials of Construction
| Pump base | Cast iron — EN 1561 EN-GJL-250 — ASTM A48-35B |
| Impellers & chambers | Stainless steel — EN 1.4301 — AISI 304 |
| Shaft seal | HQQV — FKM (Viton) elastomers |
| Shaft seal arrangement | Single |
| Bearing | SIC |
| Elastomers | FKM (Viton) |
Motor & Electrical Data
| Rated power (P2) | 10 HP |
| Voltage | 230/460 V |
| Phase | Three-phase |
| Frequency | 60 Hz |
| Rated speed | 3530 rpm |
| Number of poles | 2 |
| Rated current | 23.0/11.5 A |
| Full-load SF current | 26.5/13.2 A |
| Starting current | 750 % |
| Service factor | 1.15 |
| Power factor (cos φ) | 0.91 |
| Motor efficiency | 90.2% full load | 90.2% at 3/4 load | 89.5% at 1/2 load |
| Motor standard / make | NEMA / WEG |
| Enclosure class | IP55 / TEFC |
| Insulation class | F |
| Built-in motor protection | NONE |
| Cooling method | IC 411 |
| Motor flange | 213TC |
| Grundfos motor number | 99883246 |
| Frequency converter | None |
Connections & Operating Limits
| Connection type | ANSI / JIS |
| Pressure rating | PN 25 |
| Suction port | 2 inch |
| Discharge port | 2 inch |
| Maximum ambient temperature | 104 °F |
| Liquid temperature range | -4 °F to 194 °F |
Approvals, Weights & Identification
| Electrical approvals | CURUS |
| Grundfos product number | 99917214 |
| EAN | 5715114120159 |
| Net weight | 253.5 lb (115.0 kg) |
| Gross (shipping) weight | 517.7 lb (234.8 kg) |
| Shipping volume | 25.4 ft³ |
| Country of origin | United States |
| HS / customs tariff code | 8413.70.2040 |
Recommended Spare Parts
| Part | Description | Grundfos P/N |
|---|
| Shaft seal kit | HQQV cartridge shaft seal, 12 mm — the primary wear item | Contact us |
| Wear parts kit | CR/I/N 10 wear parts set, silicon carbide (covers 12-stage build) | Contact us |
| Gasket kit | FKM (Viton) gasket set, CR/I/N 1s/1/3/5 | Contact us |
| Replacement motor | WEG, 213TC, 10 HP, 230/460 V | 99883246 |
| Coupling kit / guard | Frame-dependent — send your pump nameplate and we will confirm | Contact us |
Genuine Grundfos service kits. All specifications above are taken directly from official Grundfos product data.
Typical Applications
Water supply and pressure boosting • reverse osmosis and membrane filtration feed • water treatment and transfer • boiler feed and condensate • industrial process and washing • HVAC and cooling circuits • irrigation.
