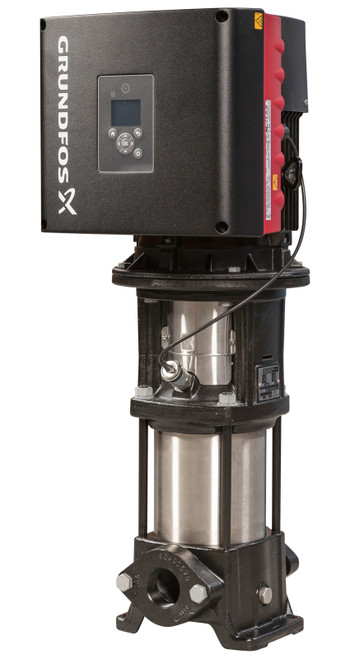

The Grundfos CRE 10-4 (product number 99449290, type key X-BN-A-E-HQQE) is a 4-stage vertical multistage centrifugal pump rated 53.3 US gpm at 150.3 ft, driven by a motor. Certified to NSF/ANSI 61 for drinking-water service.
| Rated flow | 53.3 US gpm |
| Rated head | 150.3 ft |
| Maximum head | 192.6 ft |
| Stages / impellers | 4 / 4 |
| Reduced-diameter impellers | 0 |
| Rated pump speed | 3461 rpm |
| Maximum operating pressure | 145.04 psi |
| Max pressure at temperature | 145 / 250 psi / °F |
| Pump orientation | Vertical |
| Low NPSH version | No |
| Curve tolerance | ISO9906:2012 3B |

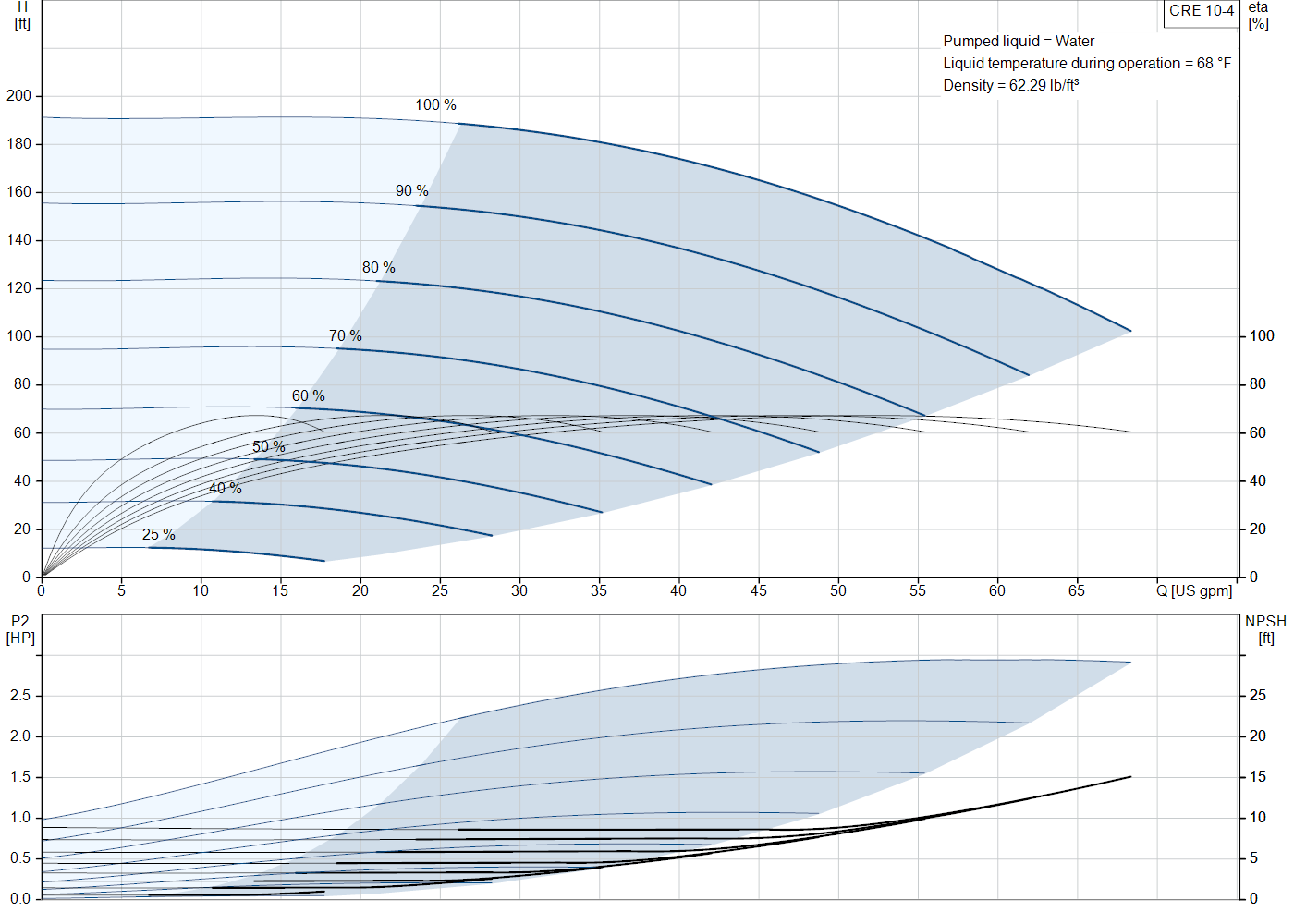

Official Grundfos curve — 60 Hz, water at 68 °F. Upper chart: head (H) and efficiency (η) against flow (Q). Lower chart: power draw (P1 input / P2 shaft) and NPSH required.
| Impellers & chambers | Stainless steel — EN 1.4301 — AISI 304 |
| Shaft seal | HQQE — EPDM elastomers |
| Shaft seal arrangement | Single |
| Elastomers | EPDM |
| Frequency | 50 / 60 Hz |
| Motor standard / make | NEMA |
| Frequency converter | Built-in |
| Connection type | Oval / NPT(F) |
| Liquid temperature range | -4 °F to 248 °F |
| Drinking-water approval | NSF/ANSI 61 |
| Electrical approvals | CE,UKCA,SEPRO,RCM, |
| Grundfos product number | 99449290 |
| EAN | 5713829303706 |
| Net weight | 154.6 lb (70.1 kg) |
| Gross (shipping) weight | 201.7 lb (91.5 kg) |
| Shipping volume | 0 ft³ |
| Country of origin | United States |
| HS / customs tariff code | 8413.70.2040 |
| Part | Description | Grundfos P/N |
|---|---|---|
| Shaft seal kit | HQQE cartridge shaft seal, 12 mm — the primary wear item | Contact us |
| Wear parts kit | CR/I/N 10 wear parts set, silicon carbide (covers 4-stage build) | Contact us |
| Gasket kit | EPDM gasket set, CR/I/N 1s/1/3/5 | Contact us |
| Coupling kit / guard | Frame-dependent — send your pump nameplate and we will confirm | Contact us |
Genuine Grundfos service kits. All specifications above are taken directly from official Grundfos product data.
Water supply and pressure boosting • reverse osmosis and membrane filtration feed • water treatment and transfer • boiler feed and condensate • industrial process and washing • HVAC and cooling circuits • irrigation.
Accessories for This Pump
Commonly specified alongside Grundfos E-pumps. Send us your pump nameplate and we will confirm the correct part for your exact build and voltage before you order.
- RPI Inlet Pressure Sensor
Inlet pressure protection with low-suction shutdown.
VFS Flow & Temperature Sensor
Flow and temperature feedback to the pump’s onboard controller.- RPS Pressure Sensor
Discharge pressure feedback for constant-pressure booster control.
Building-automation connectivity
This pump accepts a Grundfos CIM interface card (or an external CIU box) to report to a BMS or PLC. All eight are the same card with a different protocol — choose the one your building system speaks:
CIM/CIU 100 GENIbus · CIM/CIU 150 PROFIBUS DP · CIM/CIU 200 Modbus RTU · CIM/CIU 250 Modbus TCP · CIM/CIU 300 BACnet MS/TP · CIM/CIU 500 EtherNet/IP · CIM/CIU GRM · CIM/CIU LonWorks
