The Grundfos CRN 255-2 (product number 99145536, type key A-G-A-V-HQQV) is a 2-stage vertical multistage centrifugal pump rated 1350 US gpm at 381.6 ft, driven by a 201 HP motor. Certified to NSF/ANSI 372 for drinking-water service.
Performance & Hydraulic Data
| Rated flow | 1350 US gpm |
| Rated head | 381.6 ft |
| Maximum head | 483.6 ft |
| Stages / impellers | 2 / 2 |
| Reduced-diameter impellers | 0 |
| Rated pump speed | 3580 rpm |
| Maximum operating pressure | 362.59 psi |
| Pump orientation | Vertical |
| Low NPSH version | No |
| Curve tolerance | ISO9906:2012 3B |
Performance Curve

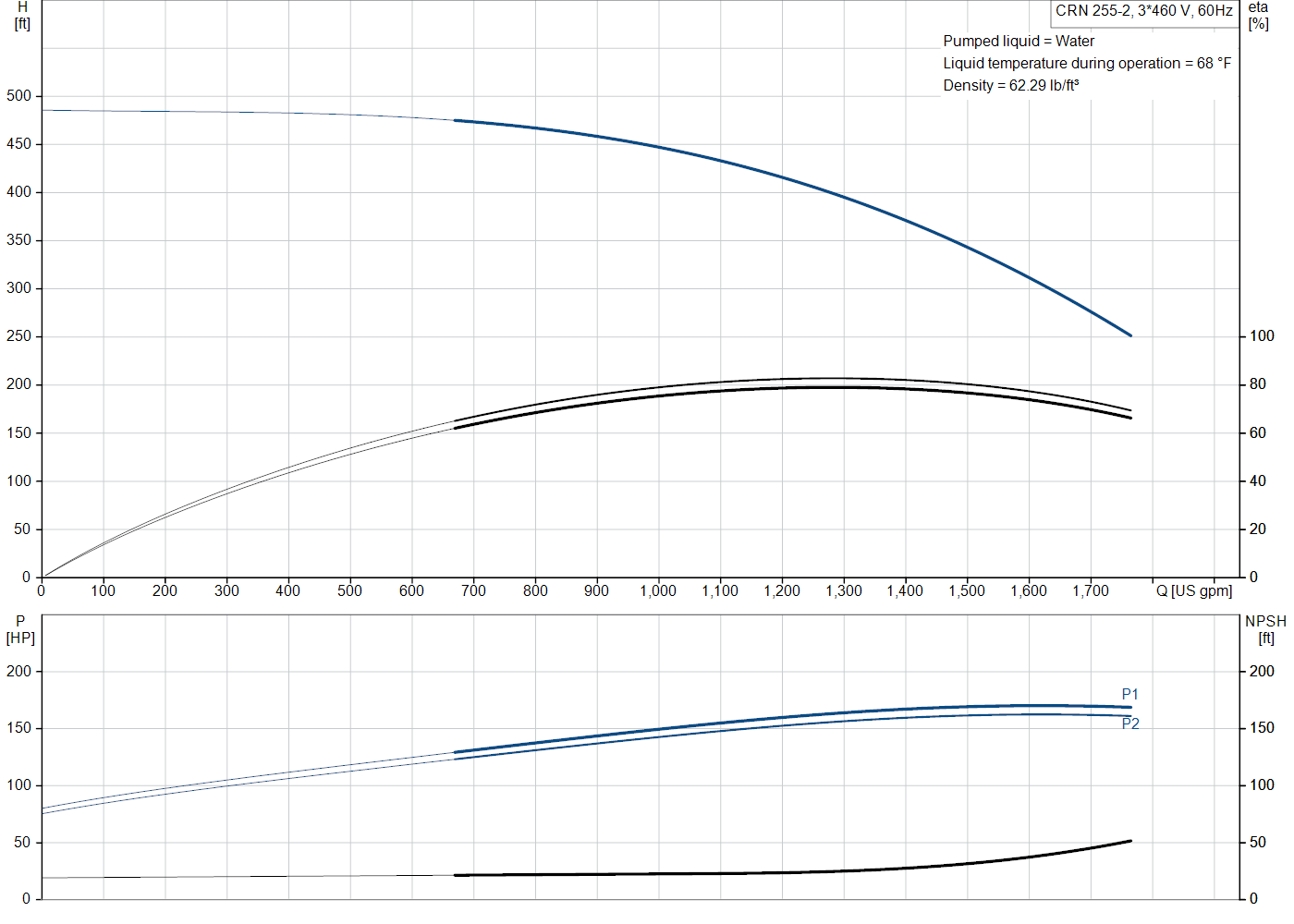

Official Grundfos curve — 60 Hz, water at 68 °F. Upper chart: head (H) and efficiency (η) against flow (Q). Lower chart: power draw (P1 input / P2 shaft) and NPSH required.
Materials of Construction
| Pump base | Stainless steel — EN 1.4408 — ASTM A351 CF8M |
| Impellers & chambers | Stainless steel — EN 1.4401 — AISI 316 |
| Shaft seal | HQQV — FKM (Viton) elastomers |
| Shaft seal arrangement | Single |
| Bearing | WC/WC |
| Elastomers | FKM (Viton) |
Motor & Electrical Data
| Rated power (P2) | 201 HP |
| Voltage | 460 V |
| Phase | Three-phase |
| Frequency | 60 Hz |
| Rated speed | 3570 rpm |
| Number of poles | 2 |
| Rated current | 222 A |
| Full-load SF current | 255 A |
| Starting current | 650 % |
| Service factor | 1.15 |
| Power factor (cos φ) | 0.89 |
| Motor efficiency | 95.4% full load | 95.0% at 3/4 load | 94.1% at 1/2 load |
| Motor standard / make | NEMA / WEG |
| Enclosure class | IP55 / TEFC |
| Insulation class | F |
| Built-in motor protection | NONE |
| Cooling method | IC 411 |
| Motor flange | 447TSD |
| Grundfos motor number | 99883219 |
| Frequency converter | None |
Connections & Operating Limits
| Connection type | ANSI |
| Pressure rating | 300 lb |
| Suction port | 8 inch |
| Discharge port | 8 inch |
| Maximum ambient temperature | 104 °F |
| Liquid temperature range | -4 °F to 194 °F |
Approvals, Weights & Identification
| Drinking-water approval | NSF/ANSI 372 |
| Grundfos product number | 99145536 |
| EAN | 5712607599683 |
| Net weight | 3043.3 lb (1380.4 kg) |
| Gross (shipping) weight | 4601.9 lb (2087.4 kg) |
| Shipping volume | 154 ft³ |
| Country of origin | United States |
| HS / customs tariff code | 8413.70.2040 |
Recommended Spare Parts
| Part | Description | Grundfos P/N |
|---|
| Shaft seal kit | HQQV cartridge shaft seal, 12 mm — the primary wear item | Contact us |
| Wear parts kit | CR/I/N 255 wear parts set, silicon carbide (covers 2-stage build) | Contact us |
| Gasket kit | FKM (Viton) gasket set, CR/I/N 1s/1/3/5 | Contact us |
| Replacement motor | WEG, 447TSD, 201 HP, 460 V | 99883219 |
| Coupling kit / guard | Frame-dependent — send your pump nameplate and we will confirm | Contact us |
Genuine Grundfos service kits. All specifications above are taken directly from official Grundfos product data.
