The Grundfos CRN 255-3-3 (product number 92542600, type key A-P-A-E-HQQE) is a 3-stage vertical multistage centrifugal pump rated 1350 US gpm at 406.8 ft, driven by a 201 HP motor. Certified to NSF/ANSI 61,NSF/ANSI 372 for drinking-water service.

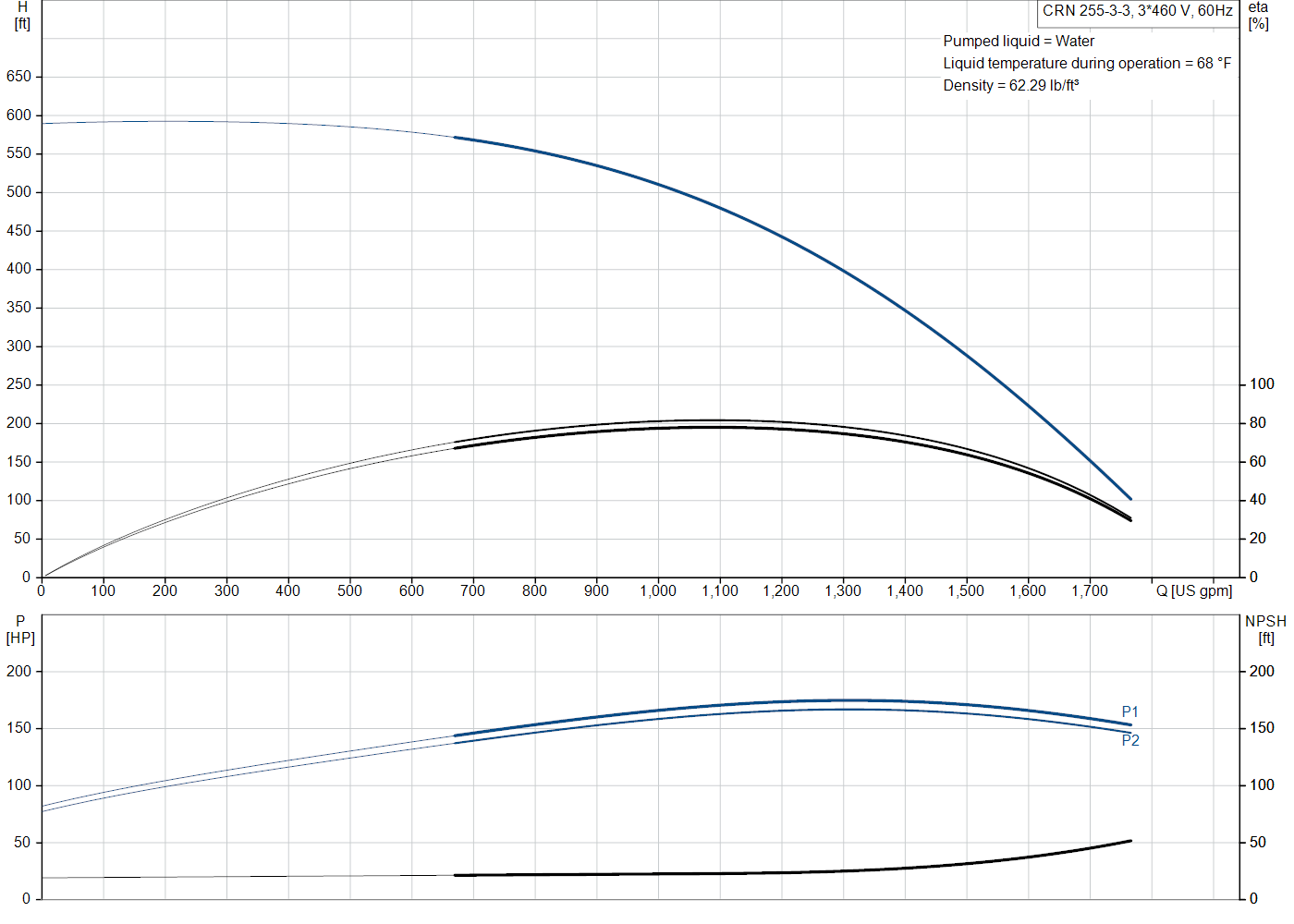

Performance Curve
Official Grundfos curve — 60 Hz, water at 68 °F. Head (H) and efficiency (η) against flow (Q); lower chart shows power and NPSH required.
Performance & Hydraulic Data
| Rated flow | 1350 US gpm |
| Rated head | 406.8 ft |
| Maximum head | 575.8 ft |
| Stages / impellers | 3 / 3 |
| Rated pump speed | 3578 rpm |
| Maximum operating pressure | 362.59 psi |
| Pump orientation | Vertical |
| Curve tolerance | ISO9906:2012 3B |
Materials of Construction
| Pump base | Stainless steel — EN 1.4408 — ASTM A351 CF8M |
| Impellers & chambers | Stainless steel — EN 1.4401 — AISI 316 |
| Shaft seal | HQQE — EPDM elastomers |
| Bearing | WC/WC |
Motor & Electrical Data
| Rated power (P2) | 201 HP |
| Voltage | 460 V |
| Phase | Three-phase |
| Frequency | 60 Hz |
| Rated speed | 3570 rpm |
| Rated current | 222 A |
| Service factor | 1.15 |
| Power factor (cos φ) | 0.89 |
| Motor efficiency | 95.4% full load | 95.0% at 3/4 load | 94.1% at 1/2 load |
| Enclosure class | IP55 / TEFC |
| Insulation class | F |
| Motor protection | NONE |
| Motor flange | 447TSD |
| Grundfos motor number | 99883219 |
Connections & Operating Limits
| Connection type | PJE |
| Pressure rating | 800 psi |
| Suction port | 8 inch |
| Discharge port | 8 inch |
| Liquid temperature range | -4 °F to 248 °F |
Approvals, Weights & Identification
| Drinking water | NSF/ANSI 61,NSF/ANSI 372 |
| Grundfos product number | 92542600 |
| EAN | 5715115984088 |
| Net weight | 3014.3 lb |
| Gross (shipping) weight | 4564.3 lb |
| Country of origin | United States |
| HS / customs tariff code | 8413.70.2040 |
Typical Applications
Water supply and pressure boosting • reverse osmosis and filtration feed • water treatment • boiler feed • industrial process • HVAC • irrigation.
