The Grundfos CRN 95-6-3 (product number 92795284, type key A-P-A-V-HQQV) is a 6-stage vertical multistage centrifugal pump rated 500 US gpm at 573.5 ft, driven by a 100 HP motor. Certified to NSF/ANSI 372 for drinking-water service.

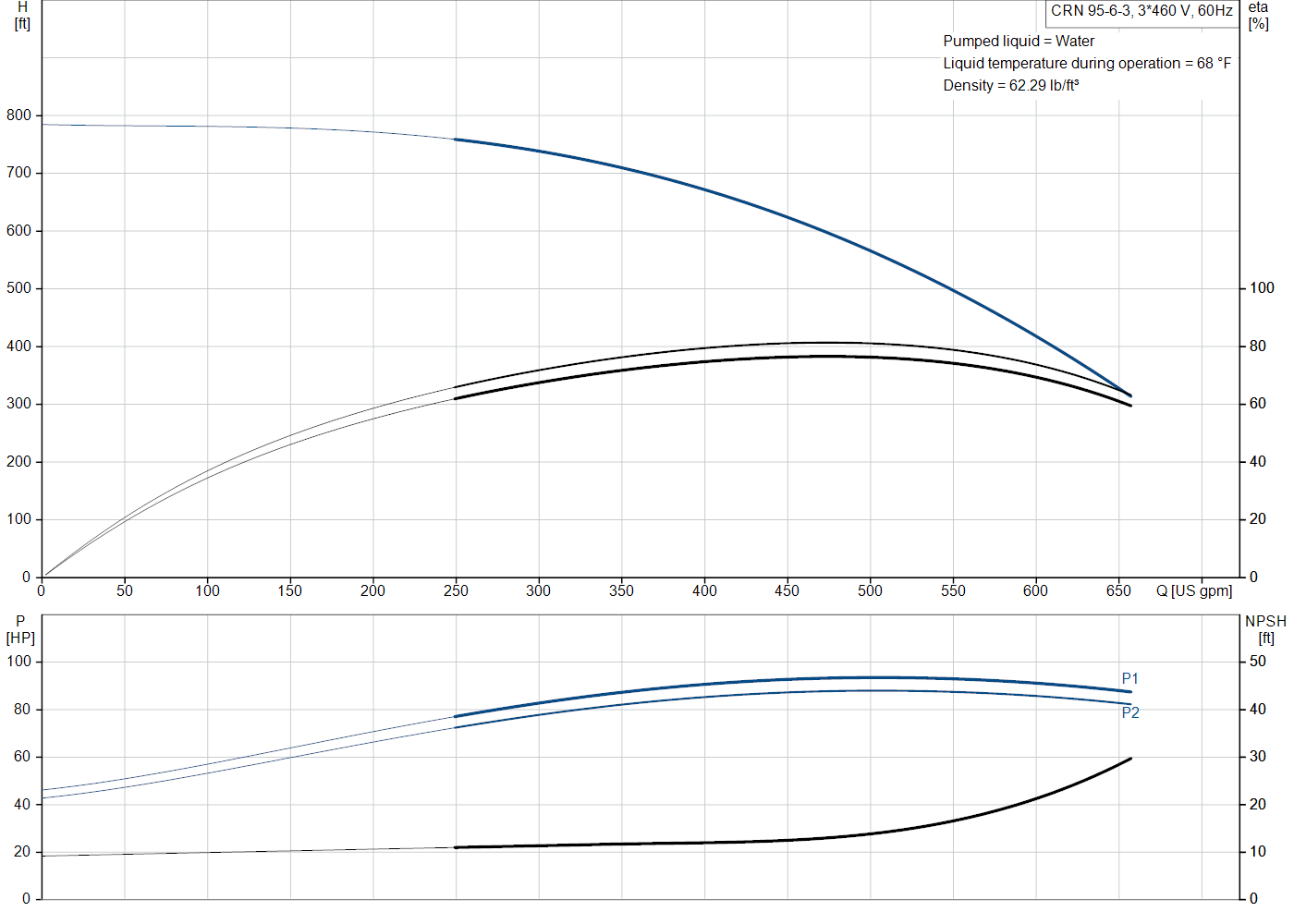

Performance Curve
Official Grundfos curve — 60 Hz, water at 68 °F. Head (H) and efficiency (η) against flow (Q); lower chart shows power and NPSH required.
Performance & Hydraulic Data
| Rated flow | 500 US gpm |
| Rated head | 573.5 ft |
| Maximum head | 786.8 ft |
| Stages / impellers | 6 / 6 |
| Rated pump speed | 3569 rpm |
| Maximum operating pressure | 580.15 psi |
| Pump orientation | Vertical |
| Curve tolerance | ISO9906:2012 3B |
Materials of Construction
| Pump base | Stainless steel — EN 1.4408 — ASTM A351 CF8M |
| Impellers & chambers | Stainless steel — EN 1.4401 — AISI 316 |
| Shaft seal | HQQV — FKM (Viton) elastomers |
| Bearing | WC/WC |
Motor & Electrical Data
| Rated power (P2) | 100 HP |
| Voltage | 460 V |
| Phase | Three-phase |
| Frequency | 60 Hz |
| Rated speed | 3545 rpm |
| Rated current | 112 A |
| Service factor | 1.25 |
| Power factor (cos φ) | 0.89 |
| Motor efficiency | 94.1% full load | 94.1% at 3/4 load | 93.0% at 1/2 load |
| Enclosure class | IP55 / TEFC |
| Insulation class | F |
| Motor protection | NONE |
| Motor flange | 405TSD |
| Grundfos motor number | 99883216 |
Connections & Operating Limits
| Connection type | PJE |
| Pressure rating | 1000 psi |
| Suction port | 4 inch |
| Discharge port | 4 inch |
| Liquid temperature range | -4 °F to 194 °F |
Approvals, Weights & Identification
| Drinking water | NSF/ANSI 372 |
| Grundfos product number | 92795284 |
| EAN | 5715119710447 |
| Net weight | 1550.8 lb |
| Gross (shipping) weight | 2658.1 lb |
| Country of origin | United States |
| HS / customs tariff code | 8413.70.2090 |
Typical Applications
Water supply and pressure boosting • reverse osmosis and filtration feed • water treatment • boiler feed • industrial process • HVAC • irrigation.
