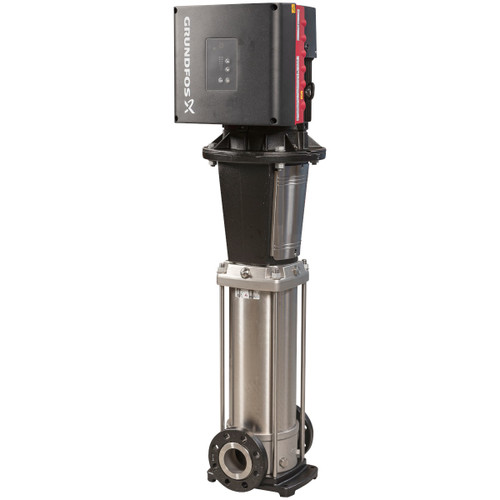

The Grundfos CRNE 32 Variable-Speed 316 Stainless E-Pump (CRNE 32) is part of the Grundfos CRNE range, engineered in All 316L stainless with E-motor. Drive: Integrated MLE IE5 permanent-magnet motor with onboard variable frequency drive (VFD). Used in RO high-pressure feed with variable recovery and similar applications.
Specifications
| Construction | All 316L stainless with E-motor |
| Motor | Integrated MLE IE5 permanent-magnet motor with onboard variable frequency drive (VFD) |
| Brand | Grundfos |
| Model | CRNE 32 |
| Country of Origin | Denmark / USA (varies by model) |
Materials of Construction
All AISI 316L stainless steel wetted parts; FKM elastomers standard
Typical Applications
- RO high-pressure feed with variable recovery
- chemical dosing
- brackish water boosting
- ultrapure pharmaceutical
- hot oil transfer
Datasheets & Manuals
Industries & Applications
The Grundfos CRNE 32 is widely deployed across these industries and use cases:
- Swro with proportional recovery control
- Brackish water ro with variable production
- Corrosive process water with vfd control
- Hot oil transfer with vfd
Related & Compare
Frequently Asked Questions
- What materials of construction are available for the CRNE 32?
- All AISI 316L stainless steel wetted parts; FKM elastomers standard
- What applications is the Grundfos CRNE 32 suitable for?
- RO high-pressure feed with variable recovery, chemical dosing, brackish water boosting, ultrapure pharmaceutical, hot oil transfer
- Is dry-run protection available?
- Yes - the Grundfos LiqTec sensor mounts inside the pump head and shuts down the pump if it detects dry running. Standard on most CRE configurations.
- Is the Grundfos CRNE 32 available with stock or quick-ship lead times?
- Many configurations ship from stock through Grundfos USA. Contact ForeverPure Place for current lead time on your specific configuration.
- How do I get a quote for the Grundfos CRNE 32?
- Use the Request Quote button on this page, call our sales team, or email sales@foreverpureplace.com with model, voltage, materials, seal type and quantity.
Need help selecting the right CRNE 32 configuration, NEMA motor, materials or seal type? Contact our pump engineering team for sizing assistance, pricing and lead times.
Accessories for This Pump
Commonly specified alongside Grundfos E-pumps. Send us your pump nameplate and we will confirm the correct part for your exact build and voltage before you order.
- RPI Inlet Pressure Sensor
Inlet pressure protection with low-suction shutdown.
VFS Flow & Temperature Sensor
Flow and temperature feedback to the pump’s onboard controller.- RPS Pressure Sensor
Discharge pressure feedback for constant-pressure booster control.
Building-automation connectivity
This pump accepts a Grundfos CIM interface card (or an external CIU box) to report to a BMS or PLC. All eight are the same card with a different protocol — choose the one your building system speaks:
CIM/CIU 100 GENIbus · CIM/CIU 150 PROFIBUS DP · CIM/CIU 200 Modbus RTU · CIM/CIU 250 Modbus TCP · CIM/CIU 300 BACnet MS/TP · CIM/CIU 500 EtherNet/IP · CIM/CIU GRM · CIM/CIU LonWorks
