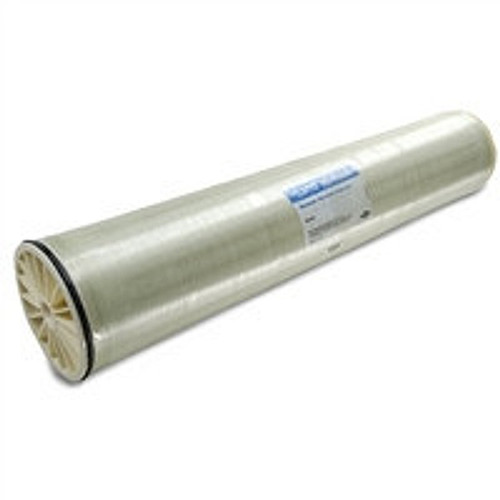

TECHNICAL SPECIFICATIONS: FilmTec™ Fortilife™ XC160 UHP
| SKU / Model | FORTILIFE-XC160UHP-ELEMENT |
| Product Type | Fortilife™ Membrane Element |
| Membrane Type | Fortilife™ XC - Extra Cross-linked |
| Active Area | 400 ft² (37 m²) |
| Permeate Flow Rate | 5,800 GPD (22.0 m³/d) |
| Stabilized Salt Rejection | 98.5% |
| Feed Spacer Thickness | 28 mil |
Operating Conditions
| Maximum Operating Pressure | 2,200 psi (152 bar) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Feed Flow Rate | 75 GPM (17 m³/h) |
| Maximum Pressure Drop | 15 psi (1.0 bar) |
| pH Range, Continuous Operation | 1 – 13 |
| pH Range, Short-Term Cleaning | 0.5 – 13.5 |
| Maximum Feed SDI | SDI 5 |
| Free Chlorine Tolerance | < 0.1 ppm |
Dimensions & Weight
| Element Diameter | 7.9 in (201 mm) |
| Element Length | 40.0 in (1,016 mm) |
| Weight (Dry) | 35 lb (16 kg) |
| Weight (Wet) | 42 lb (19 kg) |
Applications
- High-pressure RO for brine concentration
- Minimal Liquid Discharge (MLD)
- Zero Liquid Discharge (ZLD)
- High TDS industrial wastewater
Key Advantages
- Ultra-high pressure rating (1,800 psi)
- Extra cross-linked membrane for extreme durability
- Designed for brine concentrator applications
Test Conditions: 35,000 ppm NaCl, 800 psi (55 bar), 77°F (25°C), pH 8, 8% recovery
Specifications provided by DuPont Water Solutions. Contact ForeverPure for pricing and availability.
