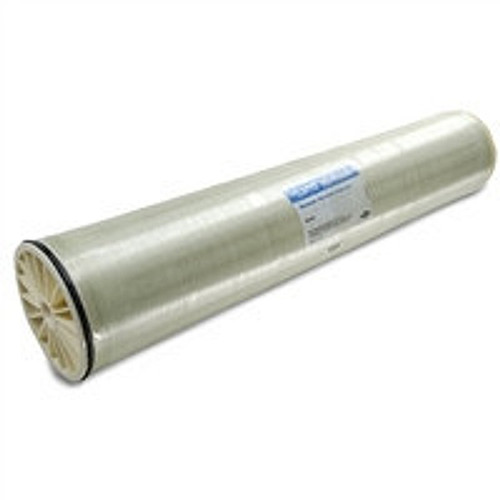

TECHNICAL SPECIFICATIONS: FilmTec™ TW30 PRO-4040
| SKU / Model | TW30-PRO-4040 |
| Product Type | Tap Water Reverse Osmosis Element |
| Membrane Type | Thin-Film Composite (TFC) |
| Active Area | 85 ft² (7.9 m²) |
| Permeate Flow Rate | 2,400 GPD (9.1 m³/d) |
| Stabilized Salt Rejection | 99.5% |
| Minimum Salt Rejection | 99.0% |
| Feed Spacer Thickness | 28 mil |
Operating Conditions
| Maximum Operating Pressure | 600 psi (41 bar) |
| Maximum Operating Temperature | 113°F (45°C) |
| Maximum Feed Flow Rate | 16 GPM (3.6 m³/h) |
| Maximum Pressure Drop | 15 psi (1.0 bar) |
| pH Range, Continuous Operation | 2 – 11 |
| pH Range, Short-Term Cleaning | 1 – 13 |
| Maximum Feed SDI | SDI 5 |
| Free Chlorine Tolerance | < 0.1 ppm |
Dimensions & Weight
| Element Diameter | 3.9 in (99 mm) |
| Element Length | 40.0 in (1,016 mm) |
| Weight (Dry) | 8 lb (3.6 kg) |
| Weight (Wet) | 10 lb (4.5 kg) |
Applications
- Municipal tap water purification
- Commercial RO systems
- Light commercial & institutional water
Key Advantages
- Reliable performance on municipal tap water
- High rejection of dissolved solids
- Proven membrane technology
Test Conditions: 2,000 ppm NaCl, 225 psi (15.5 bar), 77°F (25°C), pH 8, 15% recovery
Specifications provided by DuPont Water Solutions. Contact ForeverPure for pricing and availability.
