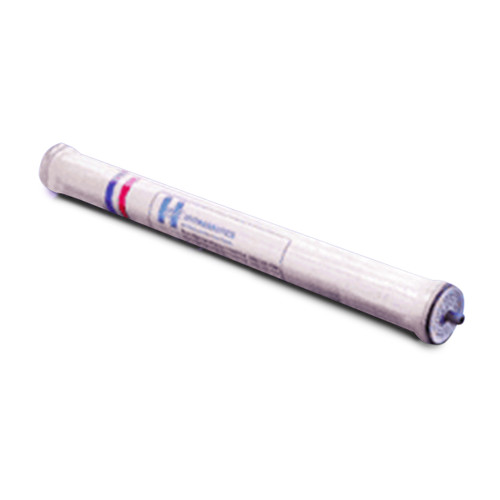

Hydranautics CPA5-LD-4040 Brackish Water Reverse Osmosis Membrane Element
Hydranautics composite-polyamide spiral-wound elements deliver proven, reliable performance for brackish and industrial water treatment. The CPA5-LD-4040 is manufactured by Hydranautics, a Nitto Group company and a global leader in RO, NF and UF membranes.
📄 Download the Hydranautics Datasheet (PDF)
Performance Specifications
| Specification | Value |
|---|---|
| Manufacturer | Hydranautics (a Nitto Group Company) |
| Series | CPA |
| Element Size | 4" x 40" |
| Configuration | Low Fouling Spiral Wound |
| Membrane Polymer | Composite Polyamide |
| Active Membrane Area | 80 ft2 (7.43 m2) |
| Permeate Flow Rate | 2,100 gpd (7.95 m3/d) |
| Salt / Nominal Rejection | 99.7% |
| Minimum Rejection | 99.5% |
| Feed Spacer | 34 mil (0.86 mm) |
Operating & Limiting Conditions
| Parameter | Limit |
|---|---|
| Maximum Applied Pressure | 600 psig (4.14 MPa) |
| Maximum Operating Temperature | 113F (45C) |
| Maximum Feed SDI | 5.0 |
| Free Chlorine Tolerance | < 0.1 ppm |
| pH Range — Operating | 2-11 |
| pH Range — Cleaning | 1-13 |
| Maximum Pressure Drop | 15 psi (0.10 MPa) |
Physical Dimensions
| Dimension | Value |
|---|---|
| Overall Length | 40.0 (1016) |
| Diameter | 3.95 (100.3) |
| Permeate Tube | 0.75 (19.1) |
| Fits Pressure Vessel | nominal 4-inch I.D. |
Performance based on Hydranautics standard test conditions: 1500 ppm NaCl solution, 225 psig (1.55 MPa) Applied Pressure, 77F (25C) Operating Temperature, 15% Permeate Recovery, 6.5 - 7.0 pH Range. Individual element flow may vary ±15%. Reference: official Hydranautics (membranes.com) datasheet.
Typical Applications
- Industrial and commercial brackish water treatment
- Well and municipal water purification
- Boiler feed and process water
- Water demineralization
- Cooling tower make-up
Frequently Asked Questions
What is the Hydranautics CPA5-LD-4040?
A 4" x 40" brackish water reverse osmosis membrane element from Hydranautics, producing up to 2,100 gpd (7.95 m3/d) at 99.7% rejection.
What is the rated flow and rejection?
Up to 2,100 gpd (7.95 m3/d) at 99.7%, at standard test conditions (1500 ppm NaCl solution, 225 psig (1.55 MPa) Applied Pressure, 77F (25C) Operating Temperature, 15% Permeate Recovery, 6.5 - 7.0 pH Range).
What pressure vessel does it fit?
A nominal 4-inch I.D. RO pressure vessel.
What is the price of the CPA5-LD-4040?
Contact ForeverPure at 408-969-2688 or sales@foreverpureplace.com for current pricing and availability.
